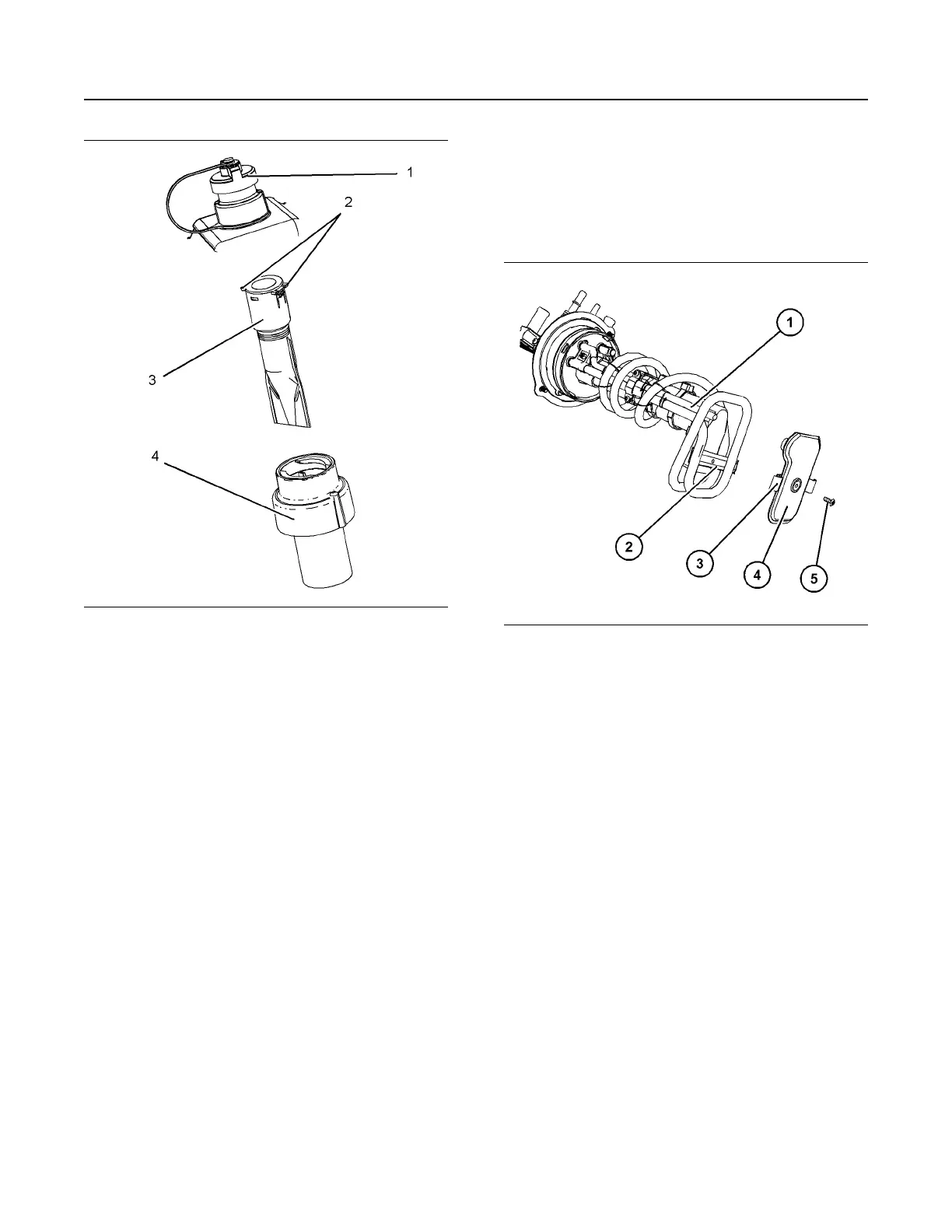

Illustration 62 g03725939
Typical example
1. Ensure that the area around cap on the Diesel
Exhaust Fluid (DEF) tank is clean. Remove cap
(1).
2. Using a suitable tool, press the tabs (2) to release
the tabs. With the tabs released remove the filler
screen (3) from DEF tank neck adapter (4).
3. The filler screen can be cleaned in clean water and
dried using compressed air. Refer to this
Operation and Maintenance Manual, “General
Hazard Information” for information on using
compressed air.
4. If the filler screen cannot be cleaned or the filler
screen is damaged, then the filler screen must be
replaced.
5. Install filler screen (3) into DEF tank neck adapter
(4). Press filler screen into neck adapter and
ensure that tabs (2) are located correctly. Install
cap (1).
i07383199
DEF Manifold Filters (Emission
Related Component) - Replace
Illustration 63 g06302888
Typical example
1. Remove DEF tank manifold. Refer to Disassembly
and Assembly, Manifold (DEF Heater) - Remove
and Install for more information.
2. Remove screw (5) and remove filter (4) and
bracket (3) and bracket (2) from assembly (1).
Discard old filter.
3. Ensure that new filter (4) is clean and free from
damage.
4. Place bracket (2) onto assembly (1). Install bracket
(3) onto assembly (1).
5. Align new filter (4) to assembly suction pipe (1)
and install new filter (4). Install screw (5) and
tighten to a torque of 2 N·m (16 lb in).
6. Install DEF manifold, refer to Disassembly and
Assembly, Manifold (DEF Heater) - Remove and
Install for more information.
110 M0092609-05
Maintenance Section
DEF Manifold Filters (Emission Related Component) - Replace
