i07383609
Diesel Exhaust Fluid Filter
(Emission Related
Component) - Replace
Personal injury can result from improper han-
dling of chemicals.
Make sure you use all the necessary protective
equipment required to do the job.
Make sure that you read and understand all direc-
tions and hazards described on the labels and
material safety data sheet of any chemical that is
used.
Observe all safety precautions recommended by
the chemical manufacturer for handling, storage,
and disposal of chemicals.
The Diesel Exhaust Fluid (DEF) pump can be located
next to the DEF tank. On some application the DEF
pump can be installed away from the DEF tank.

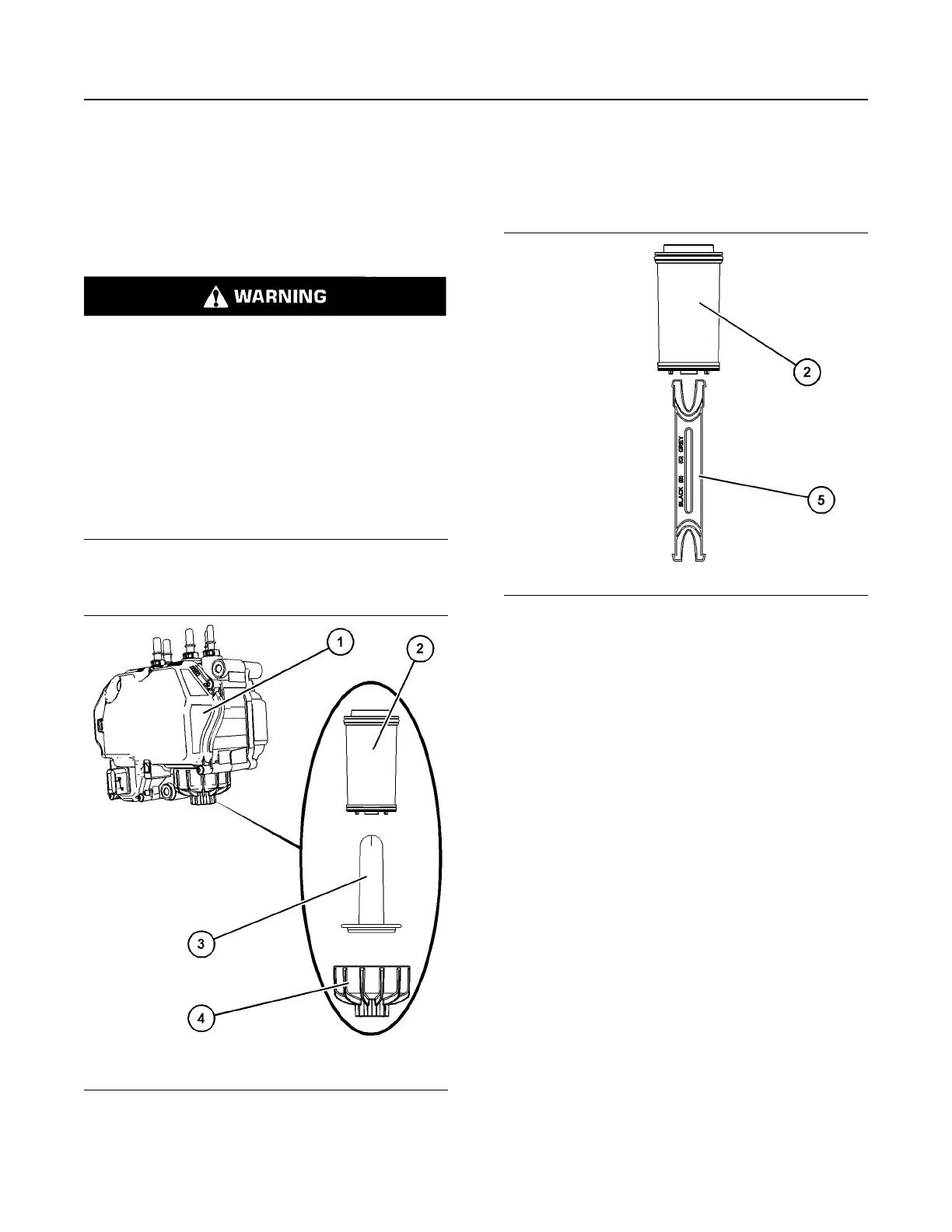

Illustration 65 g06303328
Typical example
1. Ensure that the area around the DEF filter is clean
and free from dirt. Use a 27mm Bi-Hex socket to
remove filter cap (4).
2. Remove the expansion device (3).
Illustration 66 g06215916
Typical example
3. Use supplied tool (5) to remove filter element (2)
from DEF pump assembly (1).
4. Install new filter element (2) into DEF pump
assembly (1).
5. Install expansion device (3) into filter element (2).
Install filter cap (4) and tighten cap to 20 N·m
(177 lb in).
112 M0092609-05
Maintenance Section
Diesel Exhaust Fluid Filter (Emission Related Component) - Replace
