Diesel Exhaust Fluid
(Emission Related
Component) - Fill

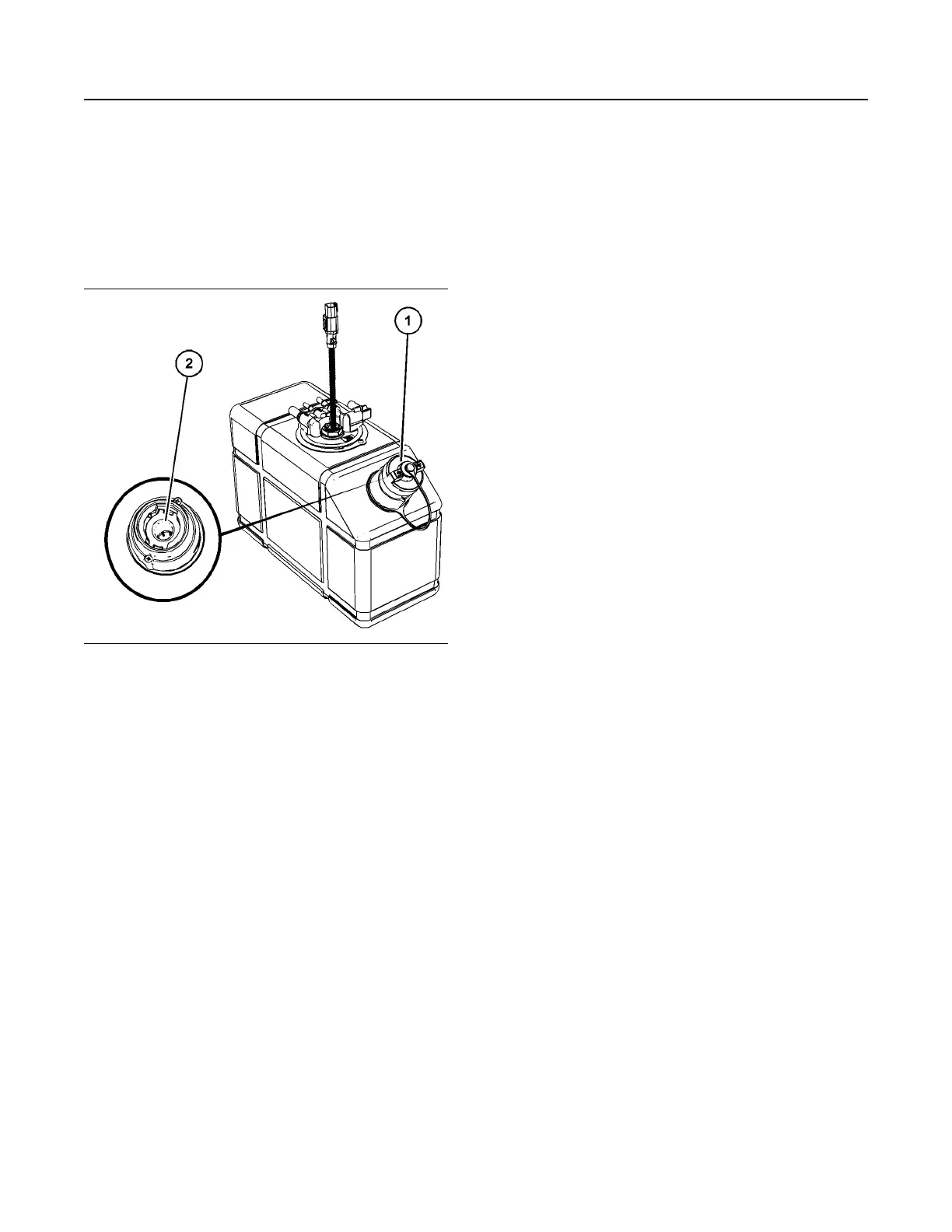

Illustration 64 g06303219
Typical example
Ensure that the correct specification Diesel Exhaust
Fluid (DEF) is used. Ensure the cleanliness of the
DEF, refer to this Operation and Maintenance
Manual, “Fluid Recommendations” for more
information.
Care should be taken when dispensing DEF. Spills
should be cleaned immediately. All surfaces should
be wiped clean and rinsed with water.
DEF that has been spilt will crystallize when the
water within the liquid evaporates. Spilt DEF will
attack paint and metal. If DEF is spilt, wash the area
with water.
Caution should be used when dispensing DEF near
an engine that has recently been running. Spilling
DEF onto hot components may cause the release of
ammonia vapors. Do not breathe ammonia vapors.
Do not clean up any spills with bleach.
Ensure that the DEF tank is full before starting work.
1. Before filling the DEF tank, ensure that the DEF
lines have been purged. Purging of the DEF lines
will take place, after the engine has stopped. Only
after the DEF lines have purged, should the DEF
tank be filled. For more information on the time
taken for purging the DEF lines, refer to this
Operation and Maintenance Manual, “Battery
Disconnect Switch”.
2. Ensure that the DEF cap (1) and the surrounding
area are clean and free from dirt. Ensure that all
equipment use in filling the tank is clean and free
from dirt.
3. Remove the DEF cap from the tank.
4. Fill the tank with the required amount of DEF.
Ensure that dirt is not introduced into the tank
during filling. Do not over fill the tank. The DEF will
require room for expansion.
Note: Always fill the DEF tank on level ground. Cold
weather can affect DEF, refer to this Operation and
Maintenance Manual, “Diesel Exhaust Fluid in cold
Weather” for more information.
5. The opening on the DEF tank (2) is a special
diameter. Ensure that the correct nozzle is used
when filling the DEF tank.
Note: At key on the DEF level gauge will show the
last known DEF level and will transition to the new
DEF level value.
6. Install the DEF cap. Check visually the DEF tank
for leakage.
M0092609-05 111
Maintenance Section
Diesel Exhaust Fluid (Emission Related Component) - Fill
