5. Tighten oil drain plug (1) and oil drain plug (5) to a
torque of 24 N·m (212 lb in). Remove container
below oil drain plug (1) and oil drain plug (5).
Discard waste oil in accordance with local
regulations.
Replace the Oil Filter Element

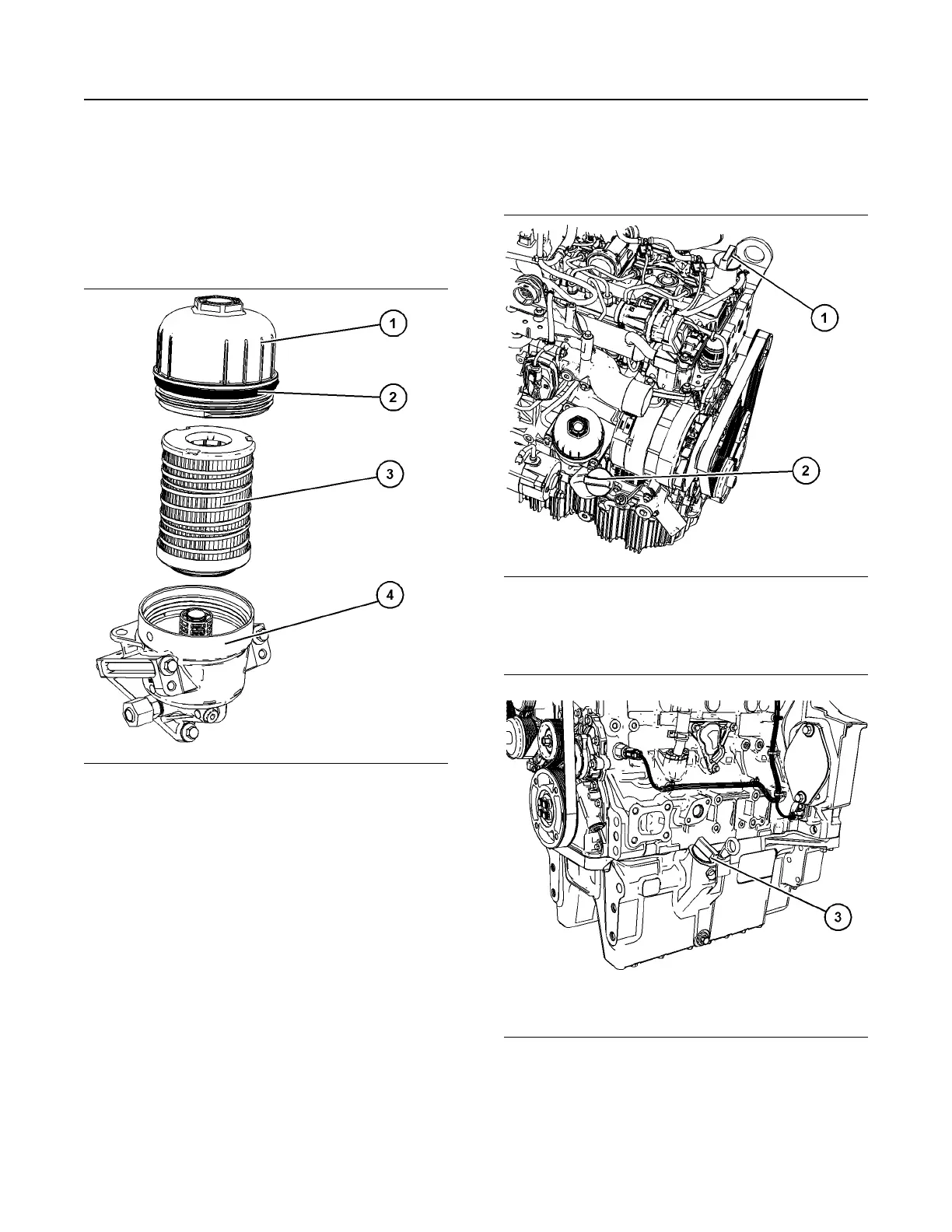

Illustration 80 g06304150
Typical example
1. Remove cap (1) from filter body (4).The filter
element (3) will be attached to cap (1). Remove
filter element (3) from cap (1). Discard old filter
element.
2. Remove O ring seal (2) from cap (1). Discard O
ring seal.
3. Ensure that cap and filter body are clean and free
from dirt or damage. Inspect new filter element for
damage before installing.
4. Install new O ring seal (2) onto cap (1). Install new
filter element (3) into cap (1). Install new filter
element (3) and cap (1) to filter body (4).
5. Tighten cap (1) to a torque of 24 N·m (212 lb in)
Fill the Oil Pan
Illustration 81 g06304141
Typical example
(1) Top mounted filler cap
(2) Side-mounted filler cap
Illustration 82 g06512039
Typical example of engines equipped with a balancer
(3) Oil pan-mounted filler
1. Refer to this Operation and Maintenance Manual,
“Fluid Recommendations” for more information on
suitable oils.
M0092609-05 123
Maintenance Section
Engine Oil and Filter - Change
