6. The secondary filter element (if equipped) must be
replaced at the same time as the primary filter
element. Refer to the Operation and Maintenance
Manual, “Fuel System Secondary Filter - Replace”.
Fuel System Primary Filter (Water
Separator) Element for Manual Fuel
Priming Pump
Remove the Element
1. Turn the fuel supply valve (if equipped) to the OFF
position before performing this maintenance.
2. Place a suitable container under the water
separator to catch any fuel that might spill. Clean
up any spilled fuel. Clean the outside body of the
filter assembly.

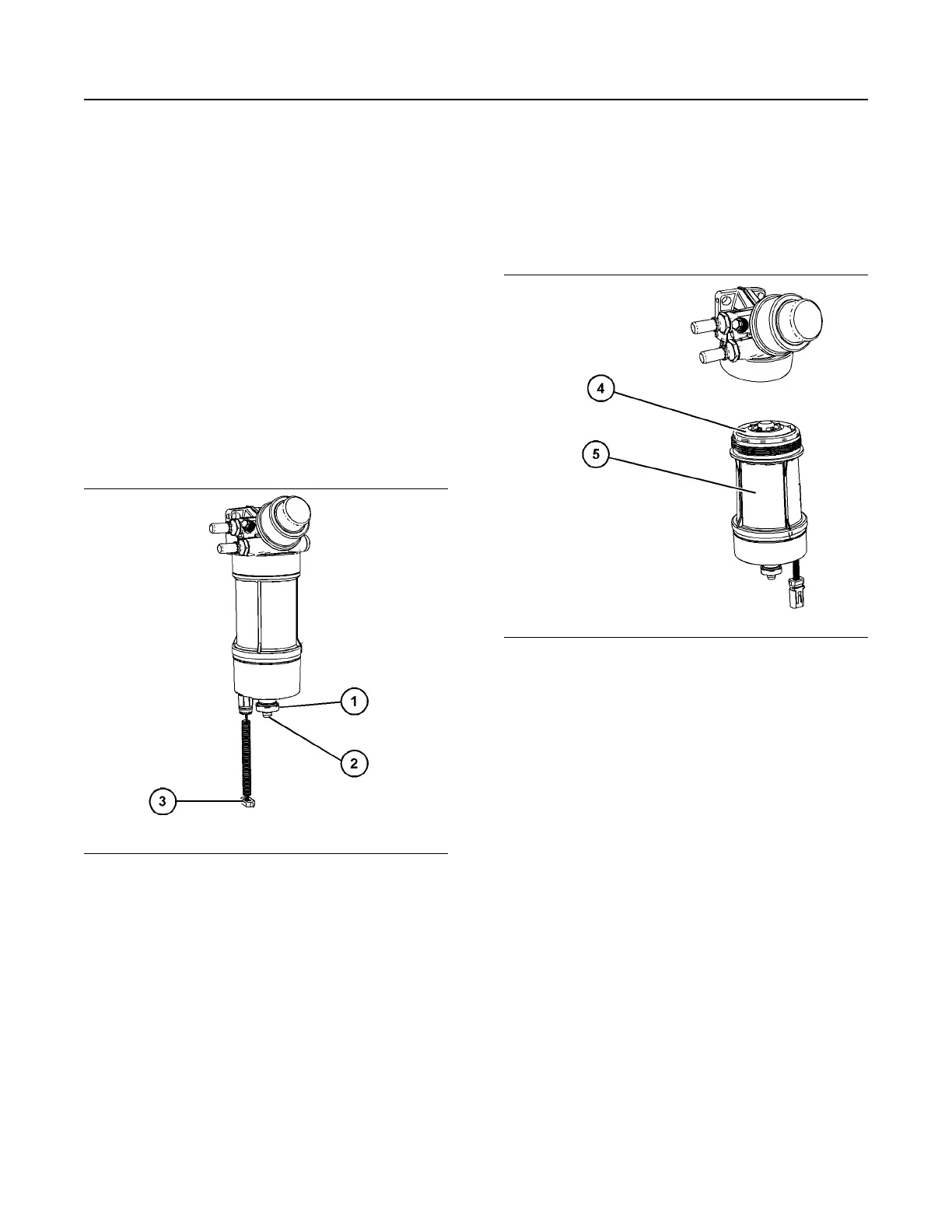

Illustration 86 g06398147
Typical example
3. Install a suitable tube onto drain (2). Open the
drain valve (1). Rotate the drain valve fully
counterclockwise. Two full turns are required.
4. Allow the fuel to drain into the container.
5. Remove the tube from the drain (2).
6. Remove the wiring harness from connection (3).
7. Rotate filter bowl (5) counterclockwise and remove
the filter bowl from assembly.
Note: If a strap wrench is required to loosen the filter
bowl (5), ensure that the strap is positioned in the
middle of the ribbed section. To avoid damage or
mechanical failure, do not position the strap around
the clear area. Do not apply loads to the clear plastic
bowl and the joint of the black plastic section of the
lower bowl.
Illustration 87 g06398170
Typical example
8. Remove the filter element (4). Clean the filter bowl.
M0092609-05 127
Maintenance Section
Fuel System Primary Filter (Water Separator) Element - Replace
