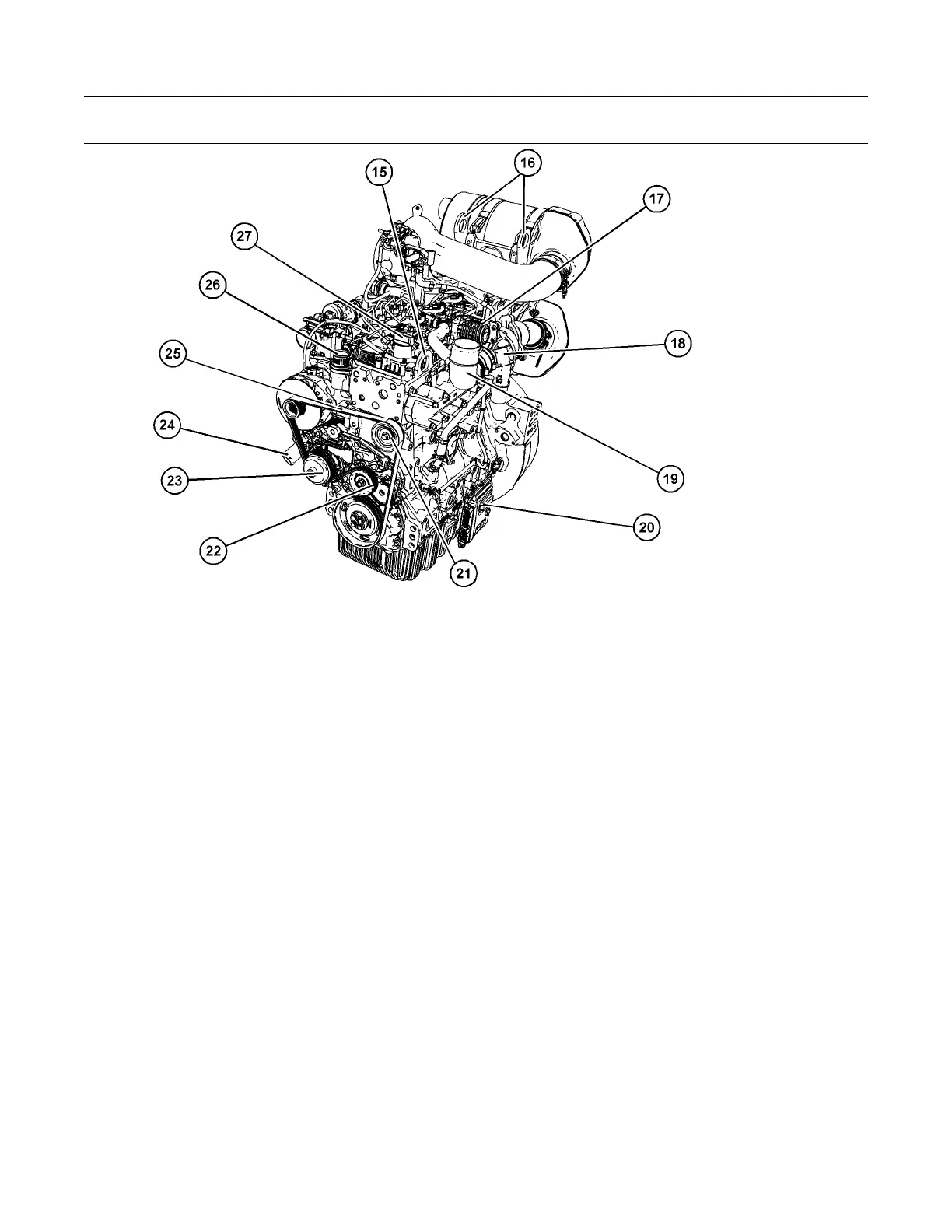

Illustration 23 g06297569
Typical example
(15) Front lifting eye
(16) Rear lifting eyes
(17) Actuator for turbocharger
(18) Turbocharger
(19) Air intake from air cleaner
(20) Electronic Control Module (ECM),
location for transportation only
(21) Idler for drive belt
(22) Adjuster for drive belt
(23) Coolant pump pulley
(24) Coolant intake
(25) Drive belt
(26) Coolant outlet
(27) Top oil filler
M0092609-05 27
