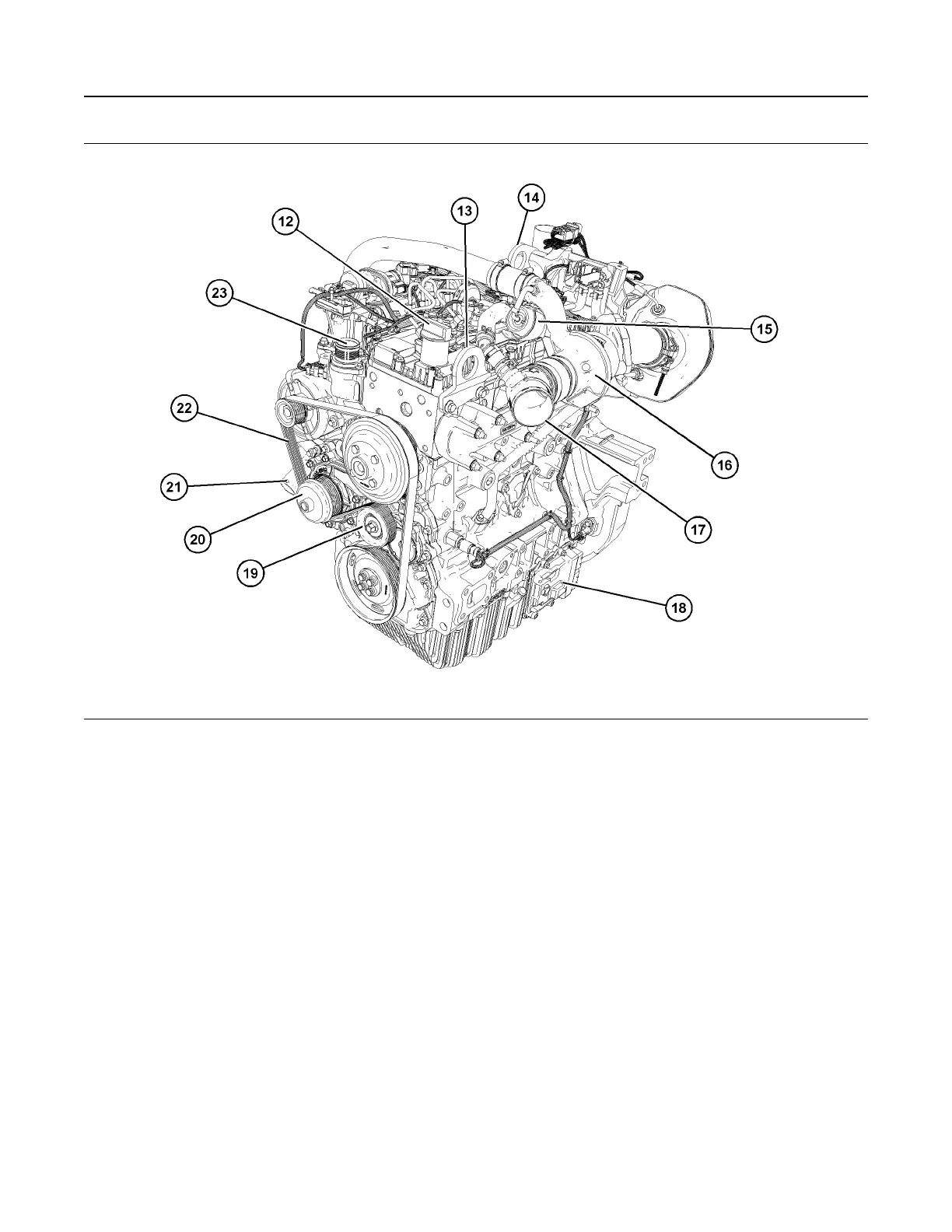

Illustration 25 g06481335
Typical example
(12) Oil filler (upper)
(13) Front lifting eye
(14) Rear lifting eyes
(15) Actuator for turbocharger
(16) Turbocharger
(17) Air intake from air cleaner
(18) Electronic Control Module (ECM),
location for transportation only
(19) Adjuster for drive belt
(20) Coolant pump pulley
(21) Coolant intake
(22) Drive belt
(23) Coolant outlet
M0092609-05 29
Product Information Section
Model View Illustrations
