NRS – NOx Reduction System
DEF – Diesel Exhaust Fluid
DOC – Diesel Oxidation Catalyst
DPF – Diesel Particulate Filter
SCR – Selective Catalytic Reduction
ECM – Electronic Control Module
NOx – Nitrogen Oxides
904J-E36TA Industrial Engine

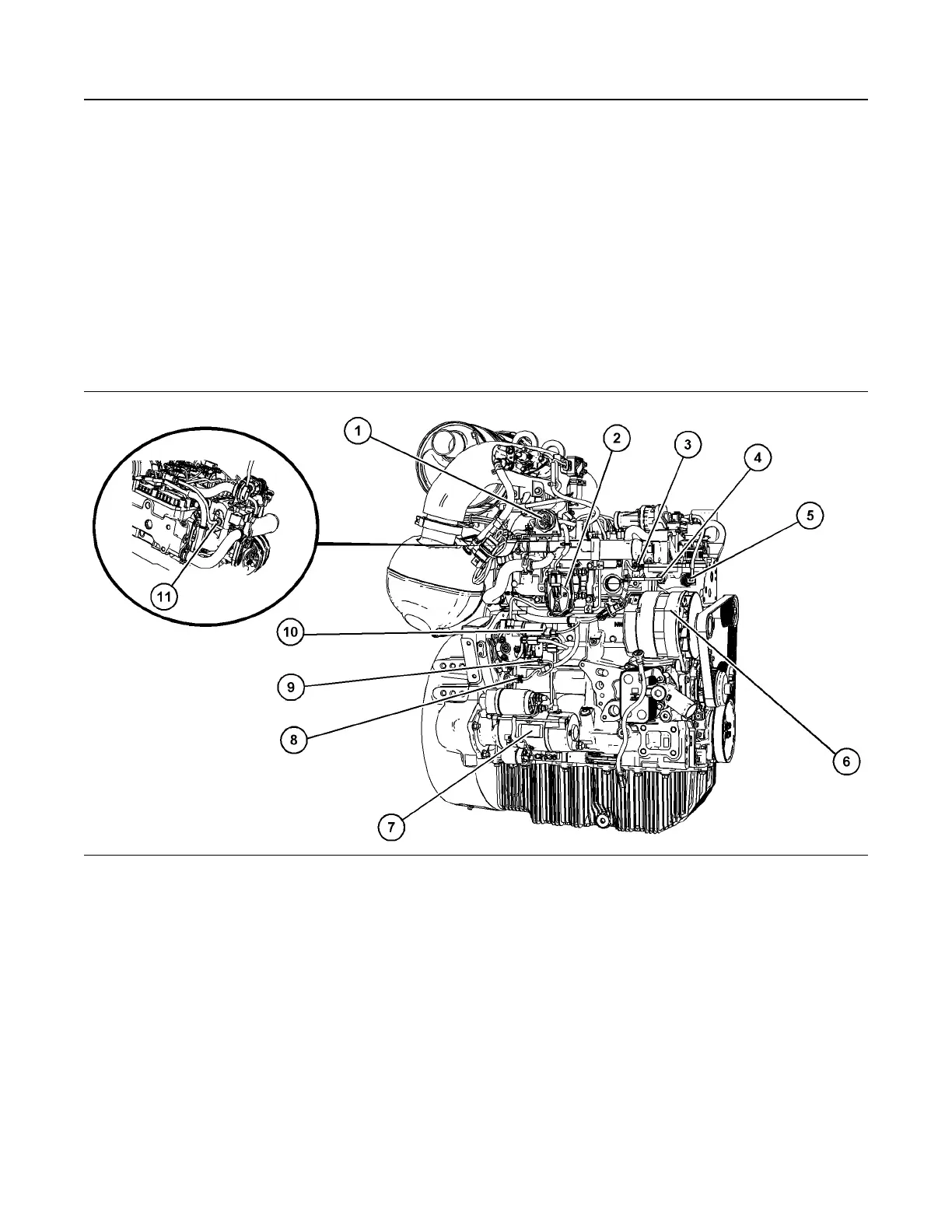

Illustration 38 g06299856
Typical example
(1) Engine 47-pin interface connector
(2) Inlet throttle valve
(3) Inlet manifold combined pressure and
temperature sensor
(4) Temperature sensor before NRS valve
(5) Coolant temperature sensor
(6) Alternator
(7) Starting motor
(8) Camshaft speed/timing sensor
(9) Fuel temperature sensor
(10) Control valve for high-pressure fuel
pump
(11) Temperature sensor post NRS valve
48 M0092609-05
Operation Section
Sensors and Electrical Components
