Step 3B Solid Concrete or Concrete Block Option
3B-1
WARNING:
● Avoid potential personal injury or property damage! Do not use a drill for
tightening the lag screws! Only use a socket wrench. DO NOT over-tighten
the lag screws [A1]. Tighten the lag screws [A1] only until they are pulled
firmly against the wall plate [01] and [02].
● Ensure the wall plate [01] and [02] is securely fastened to the
wall before continuing to the next step.
● Mount the wall plate [01] and [02] directly onto the concrete surface.
● Anything covering the wall must not exceed 5/8” (16mm).
● Minimum solid concrete thickness: 8” (203mm).
● Minimum concrete block size: 8 x 8 x 16” (203 x 203 x 406mm).
● Never drill into the mortar between blocks.

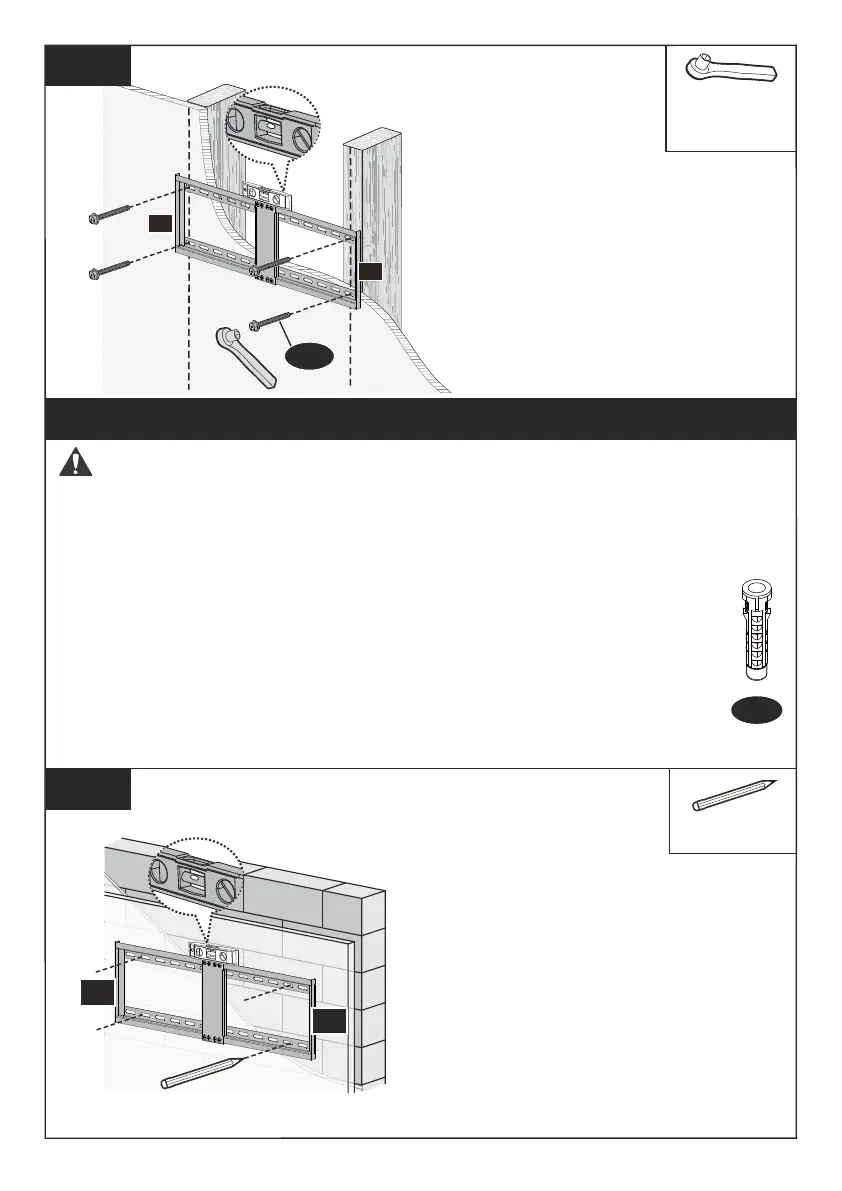

Install the wall plate [01] and
[02] using lag screws [A1].
Tighten the lag screws [A1]
only until they are pulled firmly
against the wall plate [01] and
[02]. Do not over-tighten the
lag screws [A1].
1/2
”
(13mm)
Socket Wrench
(NOT lncluded)
02
01
A1
A2
Position the wall plate [01] and
[02] at your desired height, level
the wall plate [01] and [02] and
mark the pilot hole locations.
Pencil
(NOT lncluded)
05 07 09
To Next Page
