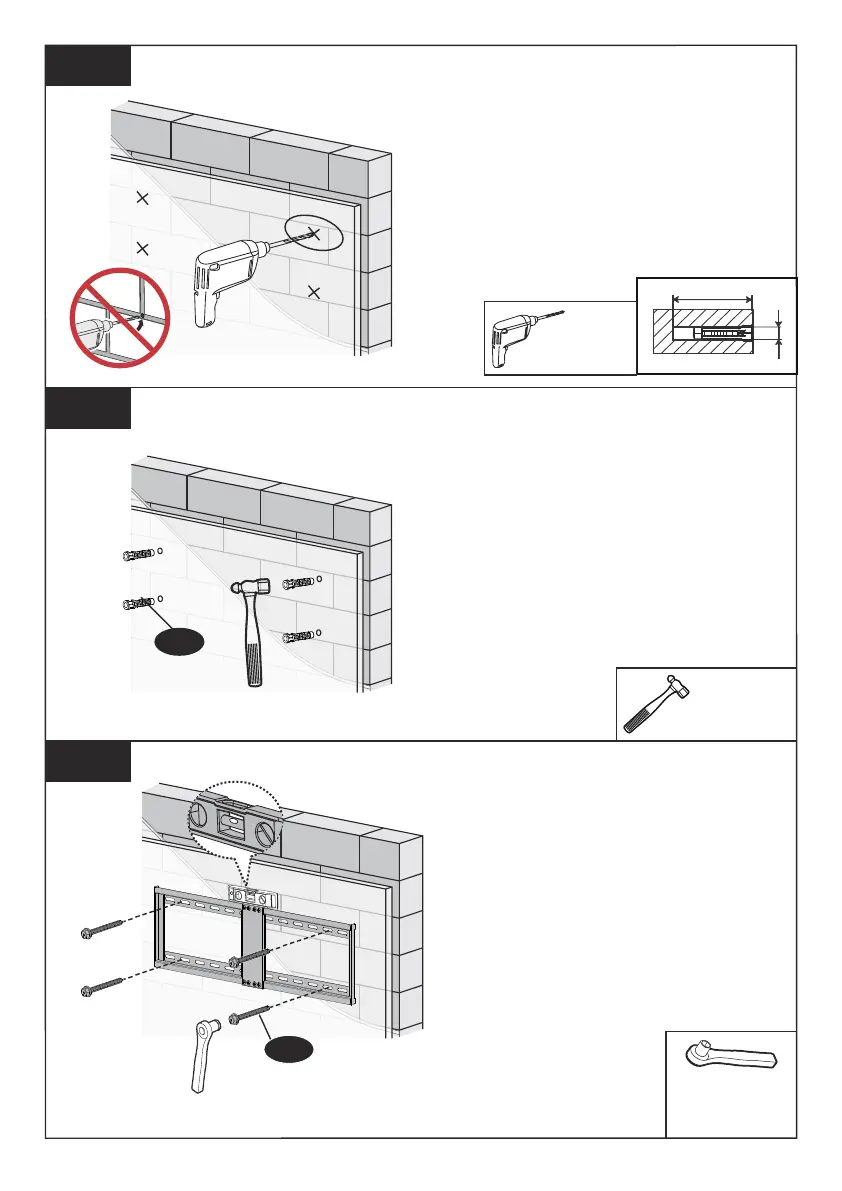

Install wall plate [01] and [02] using
lag screws [A1]. DO NOT
over-tighten the lag screws [A1].
Tighten the lag screws [A1] only
until they are pulled firmly against
the wall plate [01] and [02]. Do not
over-tighten the lag screws [A1].
1/2
”
(13mm)
Socket Wrench
(NOT lncluded)
Use the hammer to knock
anchors [A2] into the wall. Be
sure the anchors [A2] are
seated flush with the concrete
surface.
Hammer
(NOT lncluded)
A2
ø3/8
”
(10mm)
3
”
(75mm)
Drill 4 pilot holes using a 3/8
”
(10mm) diameter drill bit. Make sure
the depth is NOT less than 3
”
(75mm). NEVER drill into the mortar
between the blocks.
Drill
(NOT lncluded)
A1
05 07 09 10
