04
Option A
No Need to Attach Extender Brackets [02] and [03] to Faceplate [01A].
Select the Combination that Applies to Your VESA Hole Pattern

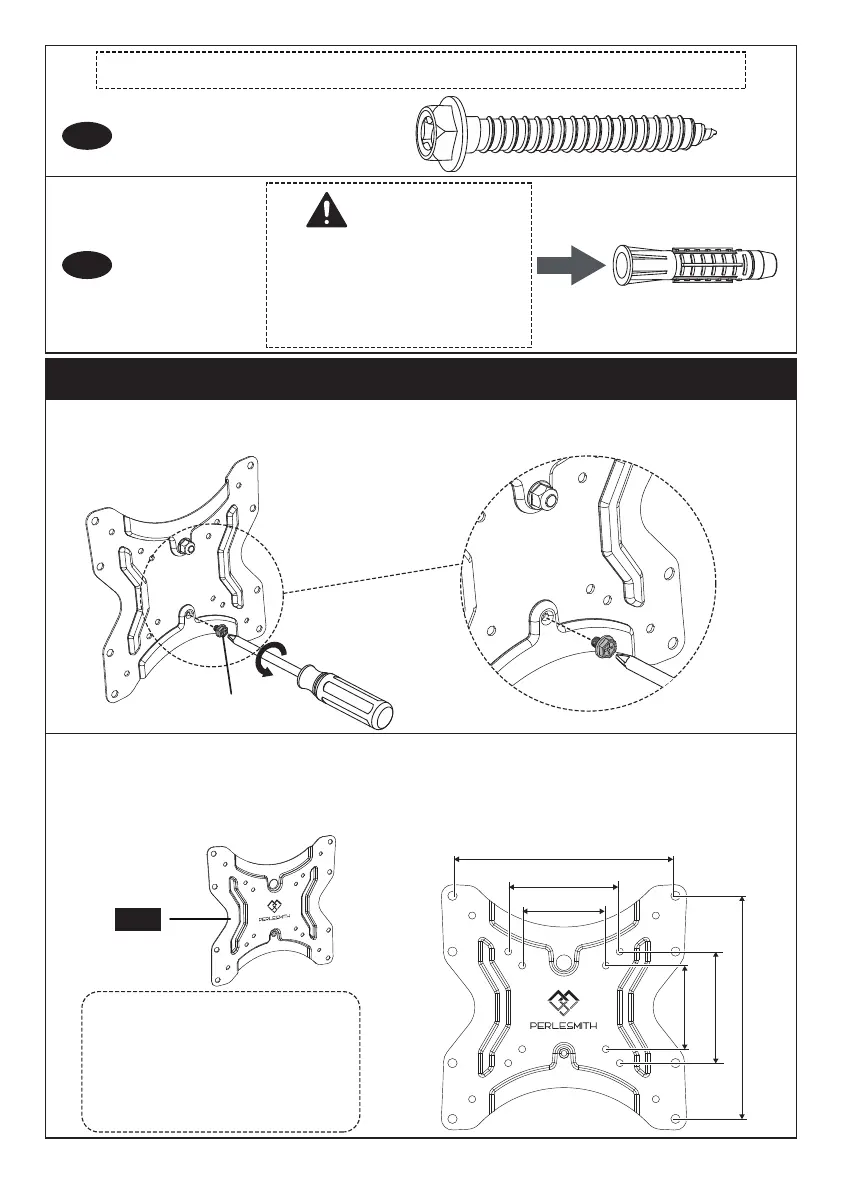

Use the phillips screwdriver to remove the bolt [S1] from the faceplate [01A]
and keep the bolt [S1] for use in Step 4.
Step 1 Secure the Extender Brackets to Faceplate (Optional)
S1
100mm
200mm
75mm
100mm
200mm
75mm
01A
x4
A1
Lag Screw
ST6.3x60 mm
Note: The lag screws are shown in accordance with the actual size
For VESA hole pattern:
3x3 in. (75x75 mm)
4x4 in. (100x100 mm)
7.9x4 in. (200x100 mm)
7.9x7.9 in. (200x200 mm)
x4
Wall
Anchor
These anchors are for
concrete or brick walls
ONLY. DO NOT use them
in drywall or wood studs.
CAUTION!
A2
To Next Page
