08
3/8in.(10mm)
Socket Wrench
(Not lncluded)

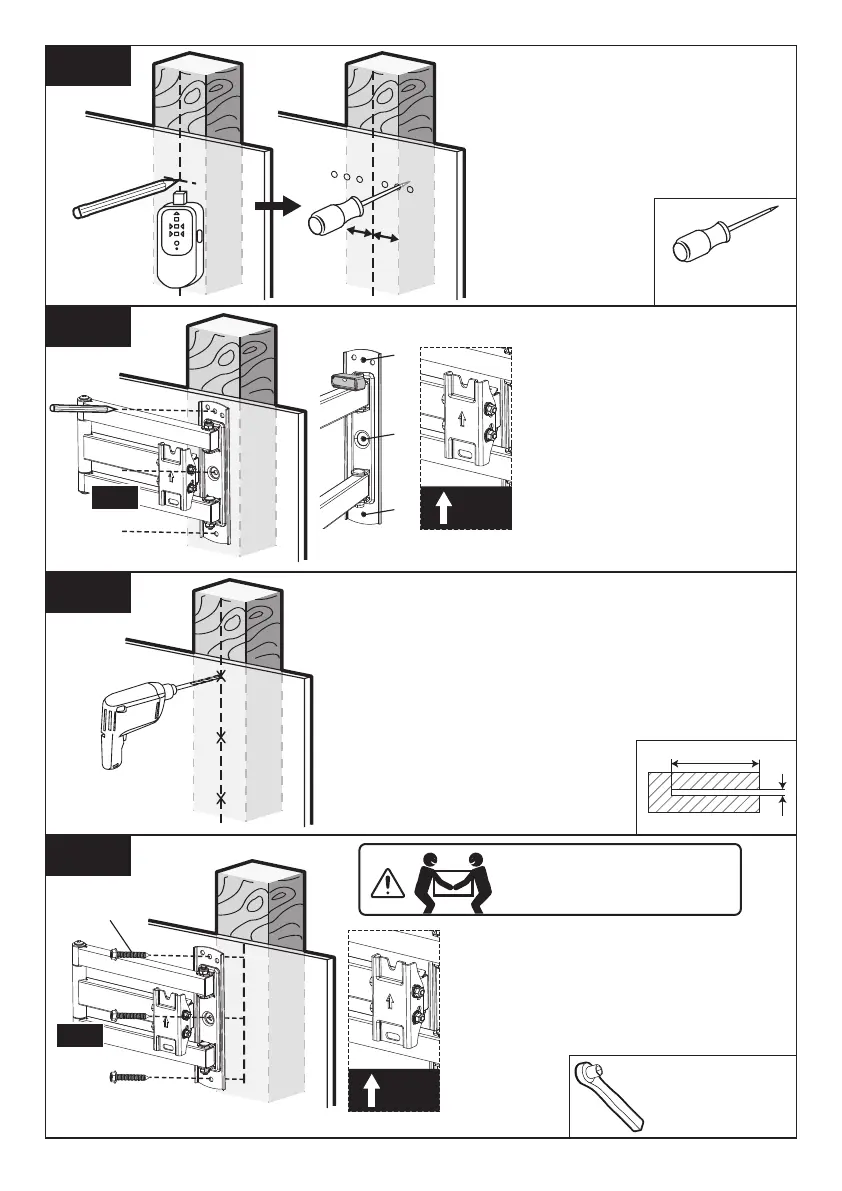

Install the arm assembly/wall plate
[01B] using lag screws [A1].
Tighten the lag screws [A1] only
until they are pulled firmly against
the arm assembly/ wall plate [01B].
Position the arm assembly/
wall plate [01B] at your
desired height and line up
the holes with your stud
center line. Level the arm
assembly/wall plate [01B]
and mark the holes.
Use a stud finder(not included)
to locate wood studs or use
an awl (not included) to verify
the edges. Mark the edge and
center locations.
Drill 3 pilot holes using a 5/32 in.
(4mm) diameter drill bit. Make sure
the depth is not less than 2 23/64 in.
(60mm).
01B
awl
(not included)
A1
01B
UP
1
2
3
UP
HEAVY! You may need
assistance with this step.
3A-1
3A-2
3A-3
3A-4
ø5/32 in. (4mm)
2 23/64 in. (60mm)
To Next Page
