Permobil Hälsa Bed Owner’s Manual 2 – Assemble the frame
www.permobil.ca 9

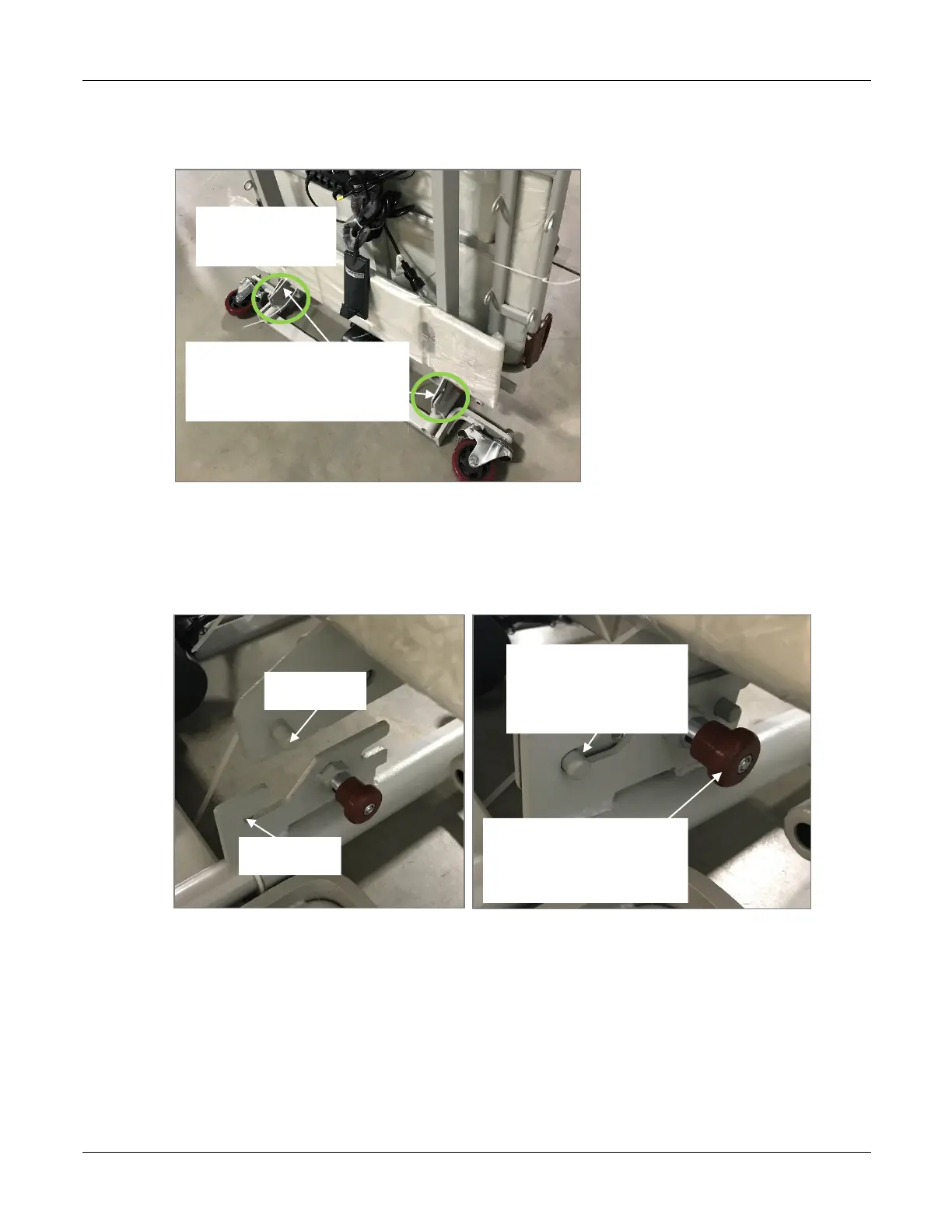

3 - Place the head frame assembly above the head support, lining up the lock pins on the
head frame assembly with the slots on the head support.
4 - Hook and join the head frame assembly to the head support by sliding the lock pins on
the head frame assembly into the slots on the head support. Ensure that each lock pin is in
position at the end of the slot as shown below. Rotate the red locking knob to secure the
lock pin in place. Repeat on the other side of the head frame. Ensure that the lock pins are
secured in place on each side.
5 - Repeat steps 3 and 4 to secure the foot frame assembly to the foot support.
LOCK PIN IS AT THE
KNOB TO SECURE THE
ASSEMBLY LOCK INTO
