3.3 - Connect the foot hi-low motor
STEPS
1 - Remove the packaging from the foot hi-low motor.
2 - Run the green color-coded cable under the frame and through the first hook.
3 - Extend the coiled cord as needed to reach the central motor.
4 - Run the cable ABOVE the back motor and then through the second hook.
5 - Plug the green plug into the green location on the central motor, making sure that the
arrow is on top.

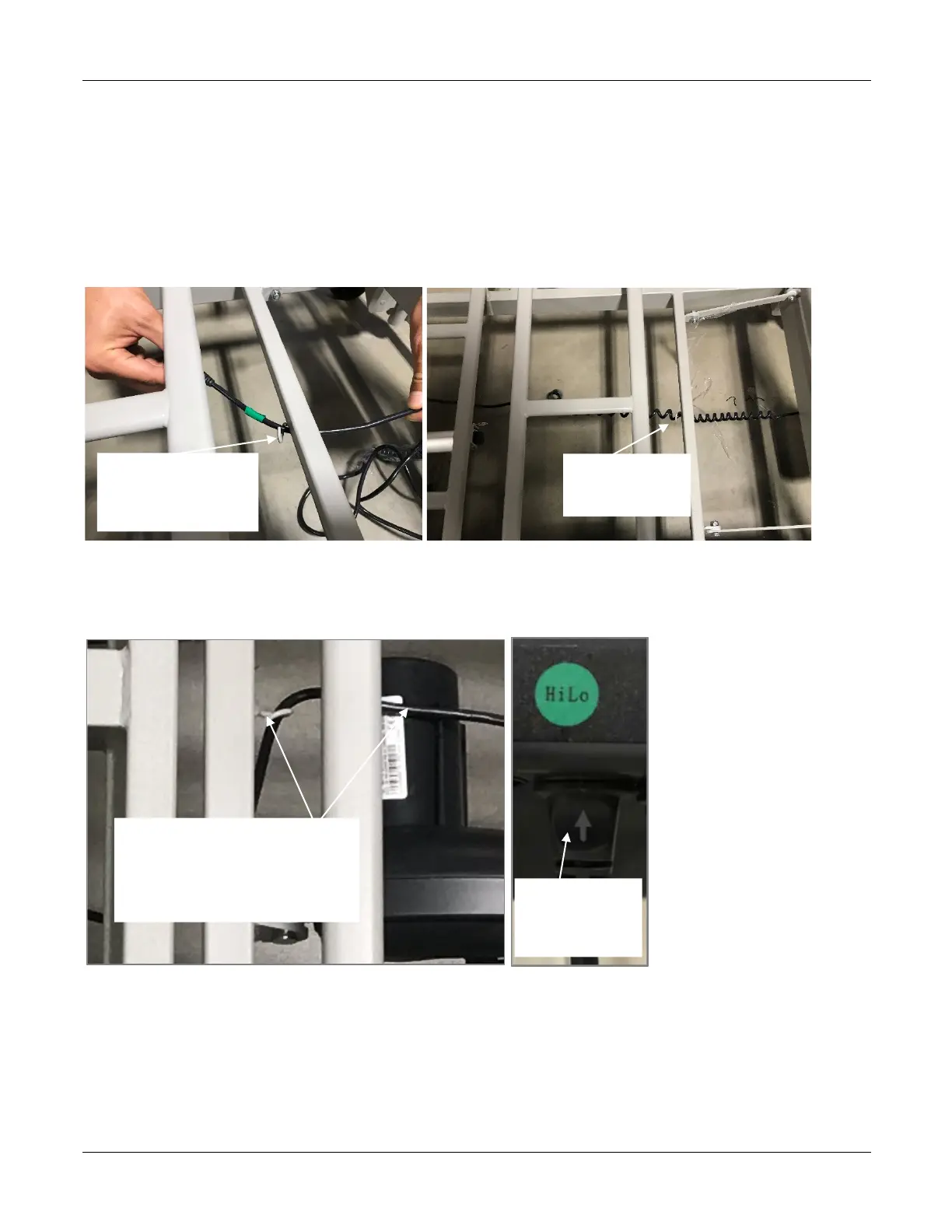

RUN THE GREEN
CABLE THROUGH
FIRST HOOK
UNCOIL AS
NEEDED
RUN THE GREEN CABLE
ABOVE THE BACK MOTOR
AND THEN THROUGH THE
SECOND HOOK
MAKE SURE
THE ARROW
IS FACING UP
