3 – Connect the electrical systems

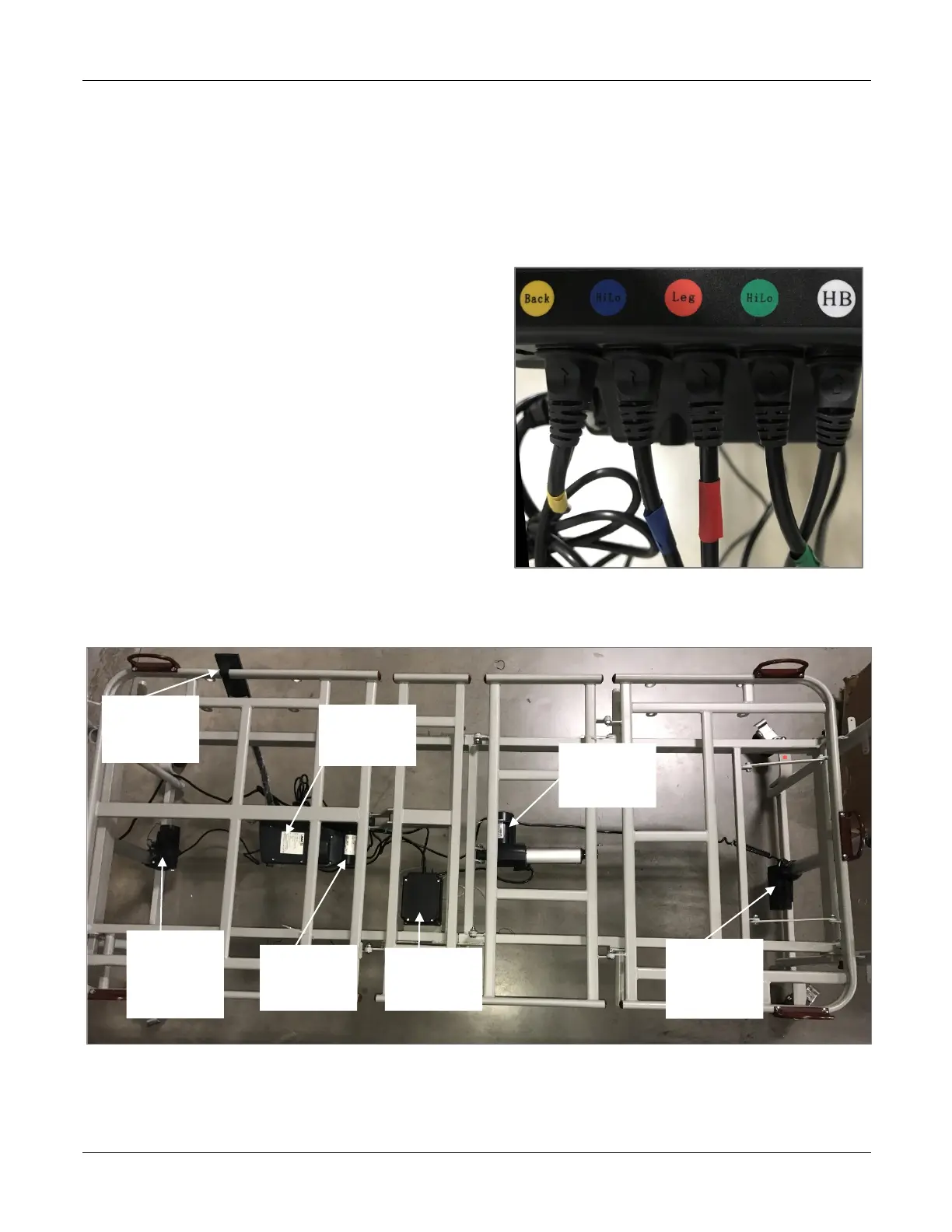

To connect the electrical systems, 5 cables must be connected to the central motor. All
connections (except the battery backup) are color-coded.
Overview
1 - Access the central motor
2 - Remove the cable separator
3 - Connect the foot hi-low motor - blue
4 - Connect the head hi-low motor - green
5 - Plug in the power cord
6 - Connect the hand pendant - white
7 - Connect the battery backup
8 - Connect the leg/knee motor – red
9 - Cut remaining ties on frame
10 - Test electrical systems
11 - Replace cable separator
NOTE: The back motor cable (yellow) is already connected.
HI-LOW
HI-LOW
