Permobil Hälsa Bed Owner’s Manual 3 – Connect the electrical systems
www.permobil.ca 22

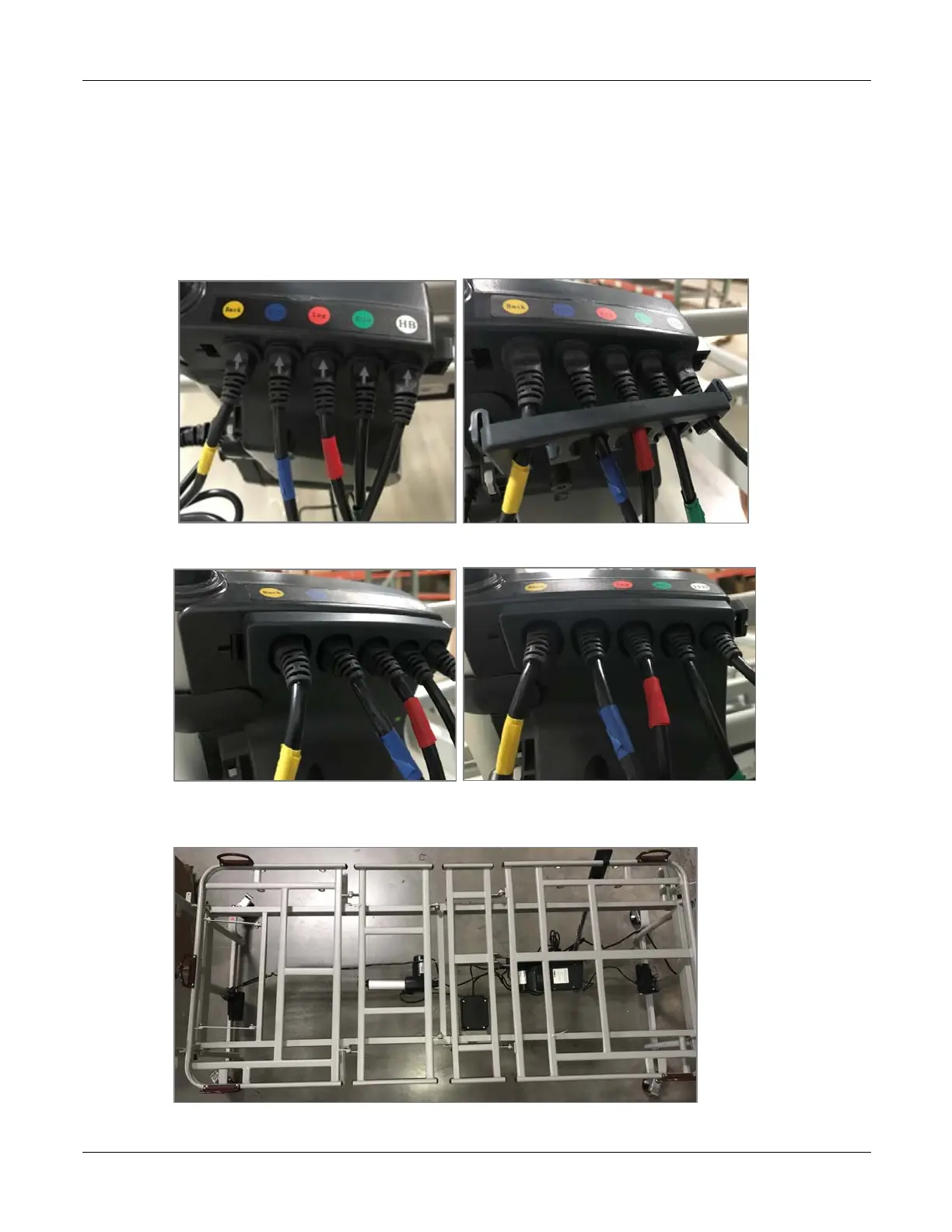

3.10 - Replace the cable separator
STEPS
1 - Ensure that the correct color-coded wires are connected to the central motor with the
arrow on each cable facing up.
2 - Feed the cables through the wire separator.
3 - Click the cable separator into place on both sides.
4 - Use the hand pendant to lower the back and knee portions of the bed so that the bed is
flat.
