Owner’s Manual Permobil K/C300 Troubleshooting
96

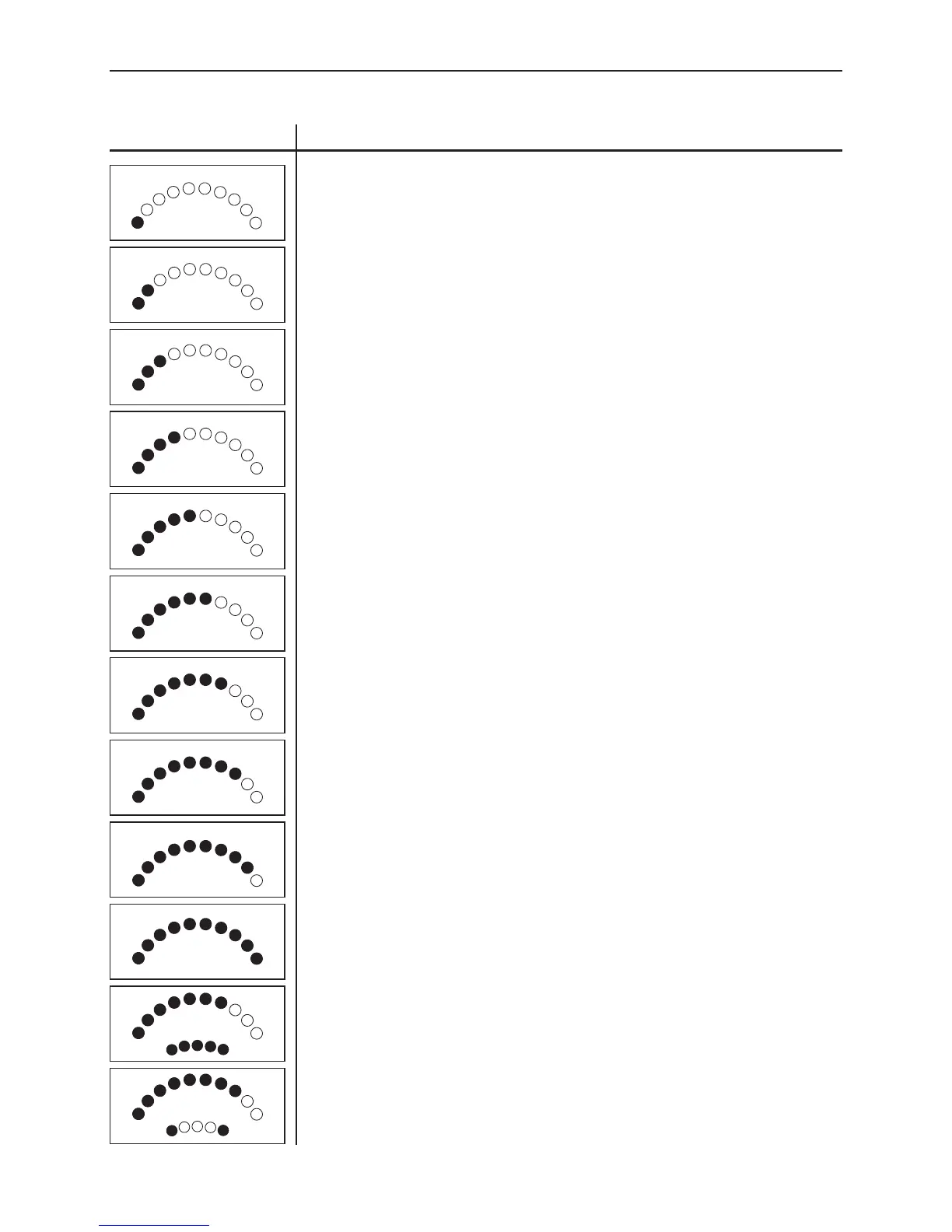

ERROR SIGNAL ERROR INDICATION - REMEDY
1 Lamp - Low battery voltage
Check the condition of the battery. Check the contact between the battery and the
control unit.
2 Lamps - Failure in left drive motor
Check the connection the left drive motor.
3 Lamps - Short-circuit in left drive motor
Check the drive motor’s contacts and cables.
4 Lamps - Failure in right drive motor
Check the connection the right drive motor.
5 Lamps - Short-circuit in right drive motor
Check the drive motor’s contacts and cables.
6 Lamps - Battery charger connected
Disconnect the battery charger.
7 Lamps - Joystick error
Check that the joystick has not been moved when the wheelchair is started.
8 Lamps - Control system error
Check the contacts to the output stage.
9 Lamps - Failure in brake circuit
Check the contacts to the magnetic brake.
10 Lamps - High battery voltage
Check the battery and the contacts between the battery and the control unit.
7+5 Lamps - Communication error
A communication error has been indicated.
Check that the cable to the control panel is not damaged and is correctly inserted.
8+2 Lamps - Actuator error
An actuator error has been indicated.
If the wheelchair is fitted with more than one actuator, check which one is not
working. Check the actuators’ cable connections.
