-52-
Changing batteries
1. Place the wheelchair on a level base..
2. Raise the seat lift to its full height.
3. Switch off the main switch.
4. Loosen the battery cover and disengage the terminal protection connector.
NB! Be careful when removing the battery cover. The cable connector
under the cover can cause injury.
5. Loosen the battery connections. First the positive, then the negative pole.
6. Remove the spacer plate
7. Lift out the batteries.
8. Set in two new batteries.
NB! Take note of the position of the batteries.
9. Replace spacer plate
10. Connect the battery connections, first the negative, then the positive pole.
11. Replace the battery cover (not forgetting the terminal protection connector)
and lower the seat lift.
12. Charge the batteries, see Charging pages 44-45.

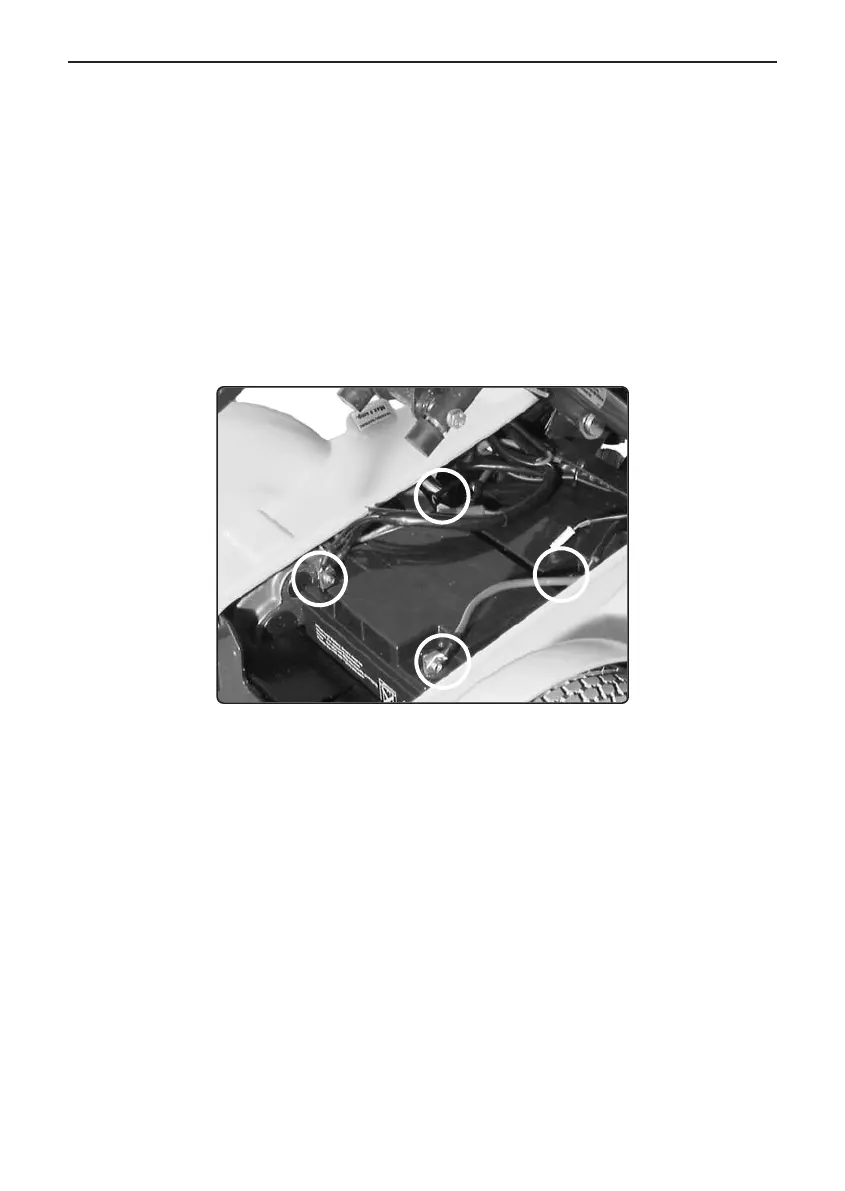

Fig. 39. Battery Connections
Owner´s manual Koala Repairs
