PART 4: CONTROLS AND DISPLAYS
PB1319 (CAT. NO. 5296 ) —37— 22-01691 (R02/02)
Gauges And Displays
On the pages that follow you will find descriptions of some of the
gauges on your instrument panel. For more information about using
them in driving, see PART 7: STARTING & OPERATING THE VEHI-
CLE. Also check the Index under the name of the gauge or function
you want to know more about.

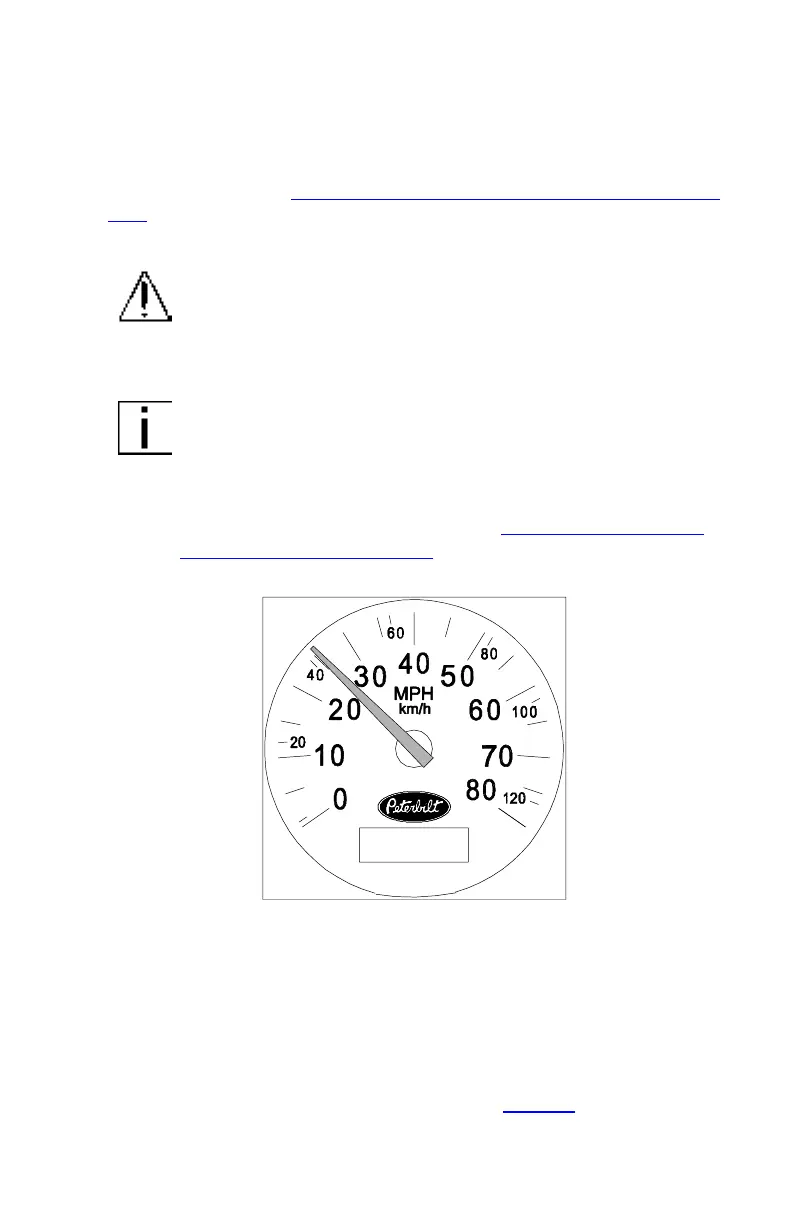

Speedometer-Message Center (SMC)
The speedometer-message center (SMC) is a combination of a
speedometer and a message center. The speedometer indicates your
vehicle’s speed in both miles and kilometers per hour. The message
center contains a 7-character, segmented LCD screen that can dis-
play the following items:
• Odometer •Hourmeter
• Trip 1 odometer •Clock
• Trip 2 odometer •Clock alarm
• Warning and Diagnostic messages (see page 94
)
A Select/Reset switch on the right side of the dash controls the display.
WARNING! Do not ignore a warning light or buzzer. These
signals tell you something is wrong with your vehicle. It
could be a failure in an important system, such as the
brakes, which could lead to an accident. Have the appropri-
ate system checked immediately.
NOTE: All of the warning lights and alarms for functions
monitored by the multiplex instrumentation system instru-
ment system are contained within the individual gauges of
the system. The alarms for other controls or systems that
you may have will be displayed separately on the instrument
panel. They are described further in PART 7: STARTING &
OPERATING THE VEHICLE of this manual.
