PEUGEOT BLASTER - Location of Components

LOCATION OF COMPONENTS
11
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

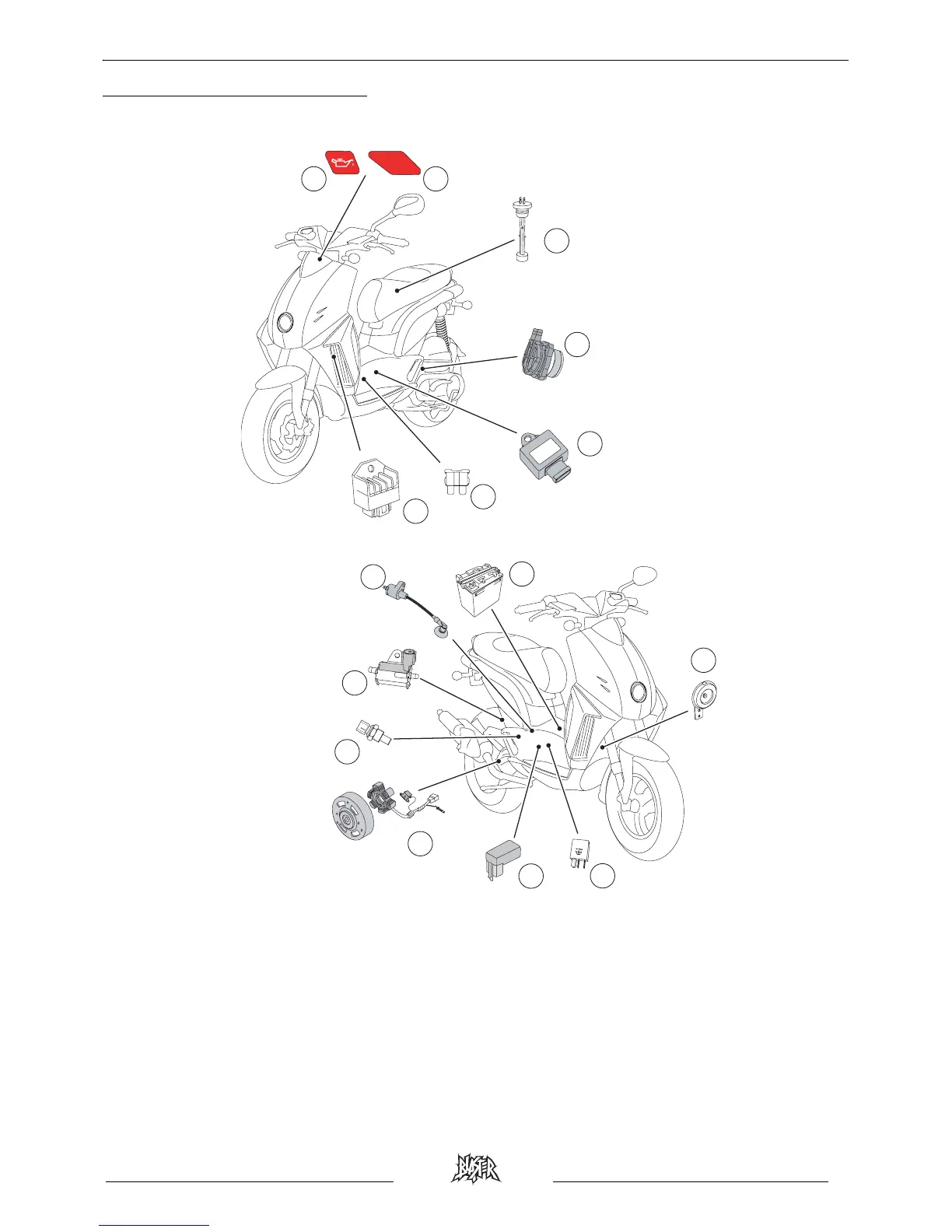

LOCATION OF COMPONENTS
1. Oil pump control unit.
2. Battery.
3. Ignition sensor.
4. CDI unit.
5. Oil level indicator.
6. Oil pump.
7. HT coil.
8. Low oil level warning light.
9. STOP light.
10. Regulator.
11. Starter motor relay.
12. Horn.
13. Engine temperature sensor.
14. 7.5 A fuse.
15. Air pump.
5
10
14
1
15
2
98
6
13
3
7
4
11
12
-
UPPER LE
VEL
LOW
ER LE
VEL
12V - 25A
STOP
STOP
NC
NC
