MISCELLANEOUS OPERATIONS
18
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
MISCELLANEOUS OPERATIONS

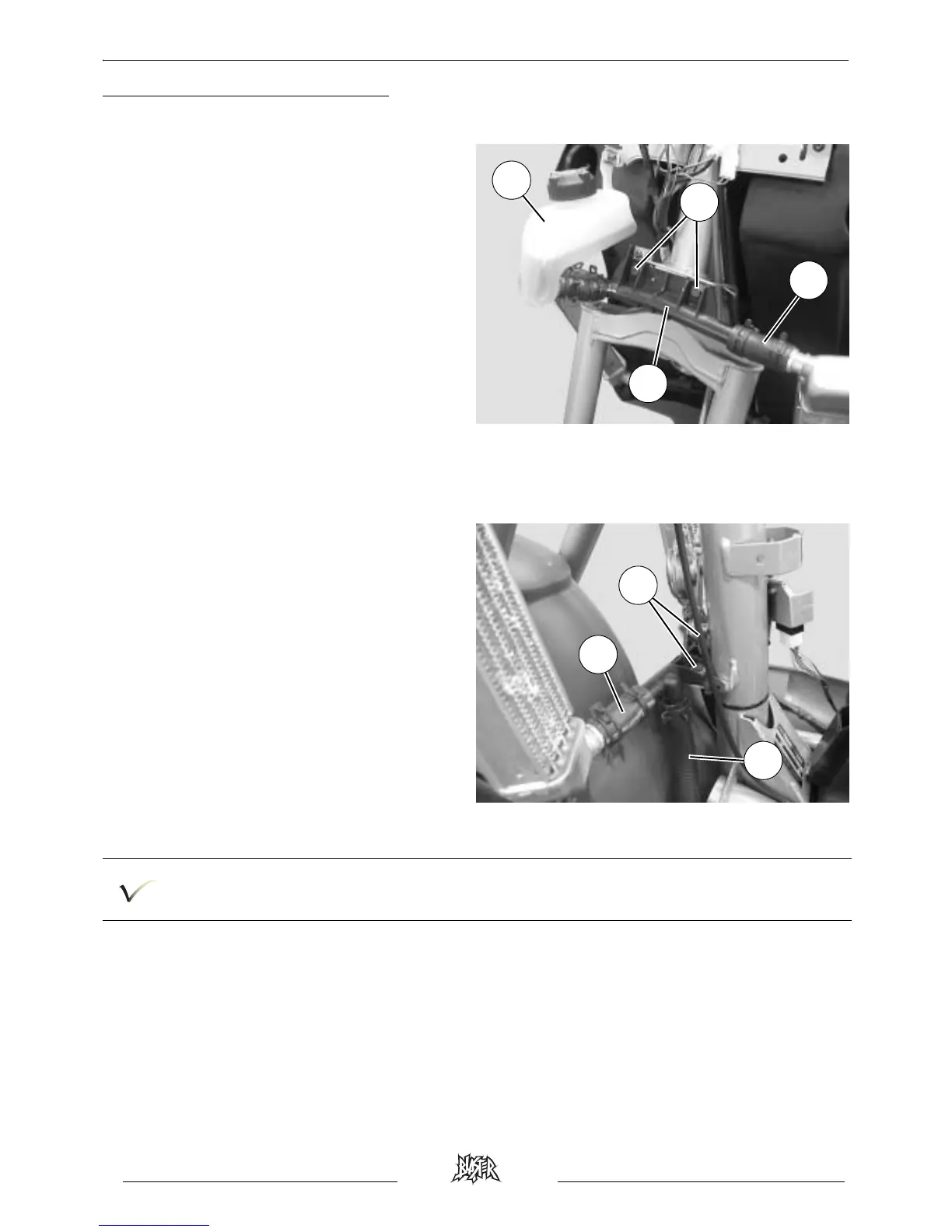

 Removal of the radiator top connecting
pipe.
 Removal of the header tank.
- Remove the front lower shield panel (see
procedure 3).
- Disconnect the lower pump from the coolant
pump to drain the cooling system (Collect the
fluid in a clean pan).
- Remove the the screw that secures the
header tank (1).
- Disconnect the pipe from the header tank
- Remove the header tank.
- Disconnect the upper pipes (2) from the RH
and LH radiator.
- Remove the 2 screws (3) that secure the
connecting pipe (4)
- Remove the connecting pipe.
 Removal of the radiator lower
connecting pipe.
- Remove the footboard (see procedure 6).
- Disconnect the lower pump from the coolant
pump to drain the cooling system.
- Remove the lower pipes (1) from the
radiators.
- Disconnect the pipes (2) which come from the
engine.
- Remove the 2 screw (3) that secure the
connecting pipe.
- Remove the connecting pipe.
When re-installing, make sure to fit all the pipes against the radiator stop.
All the collar opening tabs are to be oriented upwards.
1
2
3
4
1
2
3
