PEUGEOT BLASTER - Front Lower Shield Panel Removal

BODY PANELS
13
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

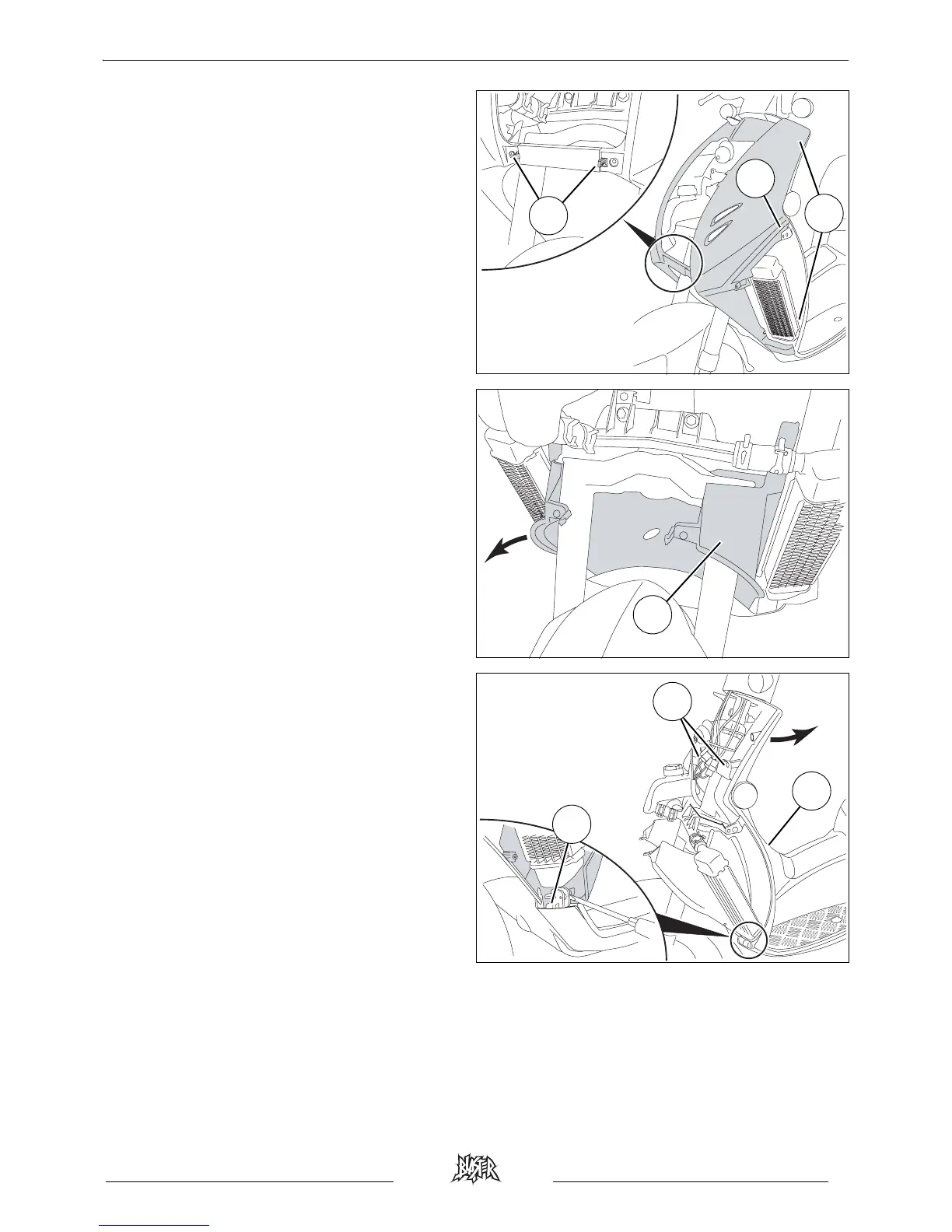

 Removal of the front lower shield pannel.
Procedure 3.
- Remove the front upper shield panel (see
procedure 1).
- Remove the radiator covers (see
procedure 2).
- Remove the 4 screws (1) that secure the front
shield panel.
- Unclip the front shield panel from the rear
shield panel as shown in (A) and the tabs (B)
of the dirt shield.
- Remove the front shield panel.
 Removal of the dirt shield.
Procedure 4.
- Remove the front lower shield panel (see
procedure 3).
- Remove the dirt shield (1) by unclipping it
from the upper bracket and by swivelling it to
the right or to the left.
 Removal of the rear shield panel.
Procedure 5.
- Remove the front lower shield panel (see
procedure 3).
- Remove the 3 screws (1) that secure the rear
shield panel.
- Remove the key from the ignition switch.
- Using a screwdriver, unclip the lower tabs (C).
- Remove the rear shield panel.
1
A
B
1
1
1
C
