PEUGEOT BLASTER - Body Panel Removal and Installation; Front Top Shield Panel Removal

BODY PANELS
12
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
BODY PANELS

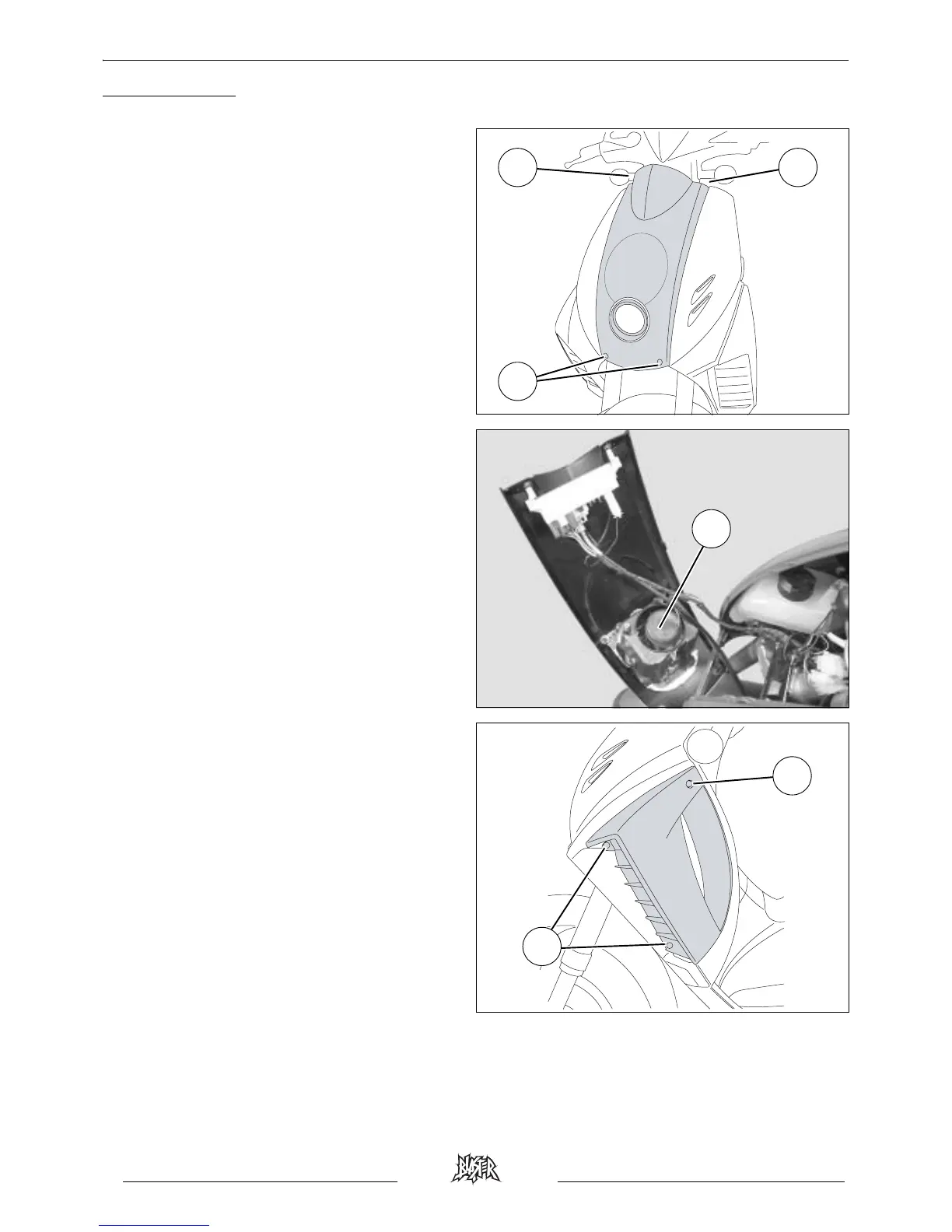

 Removal of the front top shield panel.
Procedure 1.
- Disconnect the speedometer driver control
cable.
- Unclip the control cable from the front
mudguard.
- Remove the 4 screws that secure the shield
panel (1).
- Unclip the rubber protector (2).
- Disconnact the headlight.
- Disconnect the instrument cluster.
- Remove the front upper shield panel.
 Removal of the radiator covers.
Procedure 2.
- Remove the 3 retaining screws (1) from the
radiator covers.
- Remove the radiator covers.
1 1
1
2
1
1
