BODY PANELS
14
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

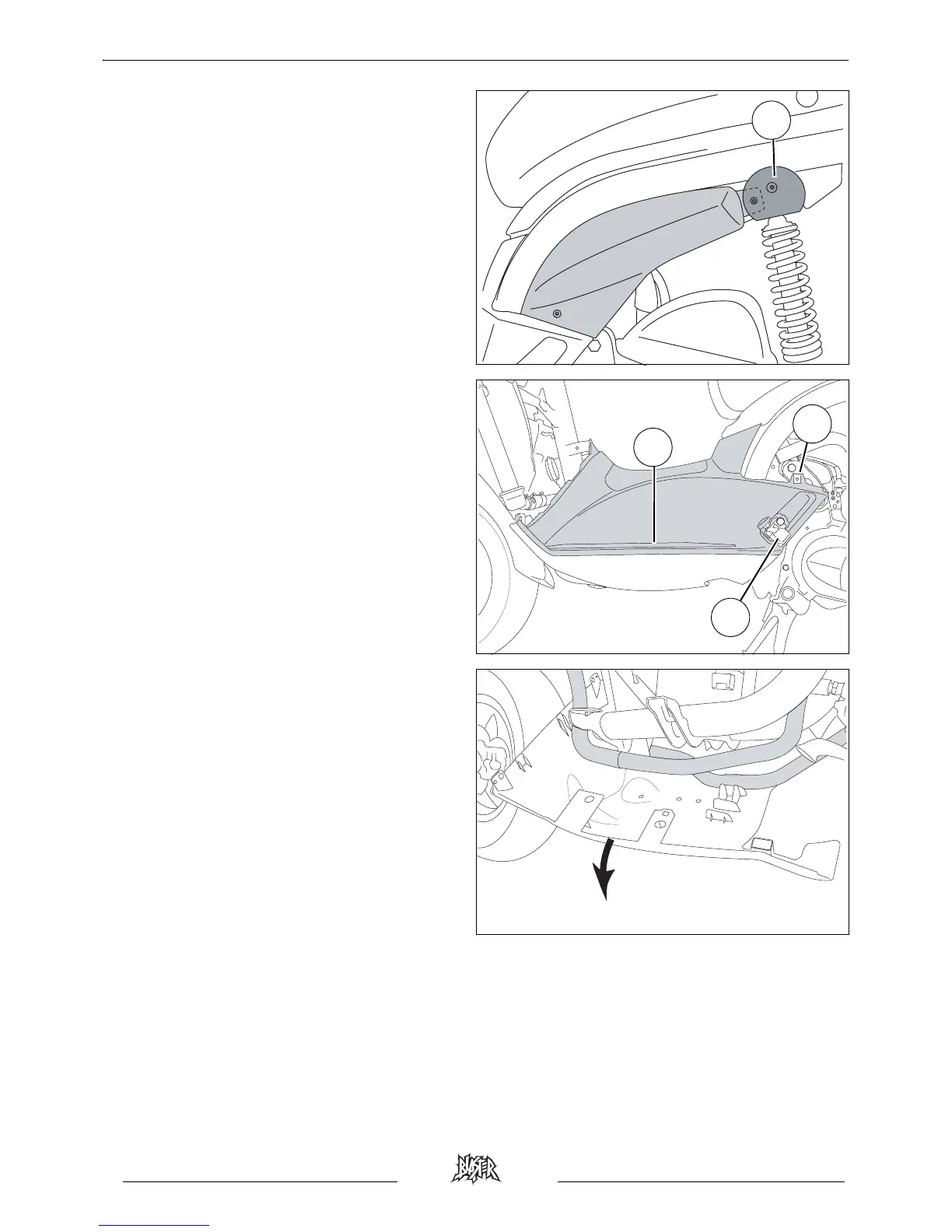

Removal of the footboard.
Procedure 6.
- Remove the rear shield panel (see
procedure 5).
- Remove the shock absorber
trim (1) (1 screw).
- Remove the side fairings (2 screw).
- Remove the 2 clips (2) in order to avoid
scratching the frame.
- Remove the complete footrest ass'y (3).
- Remove the 2 screws (4) that secure the
footboard.
- Remove the footboard ass'y.
Removal of the under body panel.
- Unclip the under body panel.
1
2
1
2
3
2
4
