Pfaff 1163 Adjustment Manual

Adjustment
13 - 11

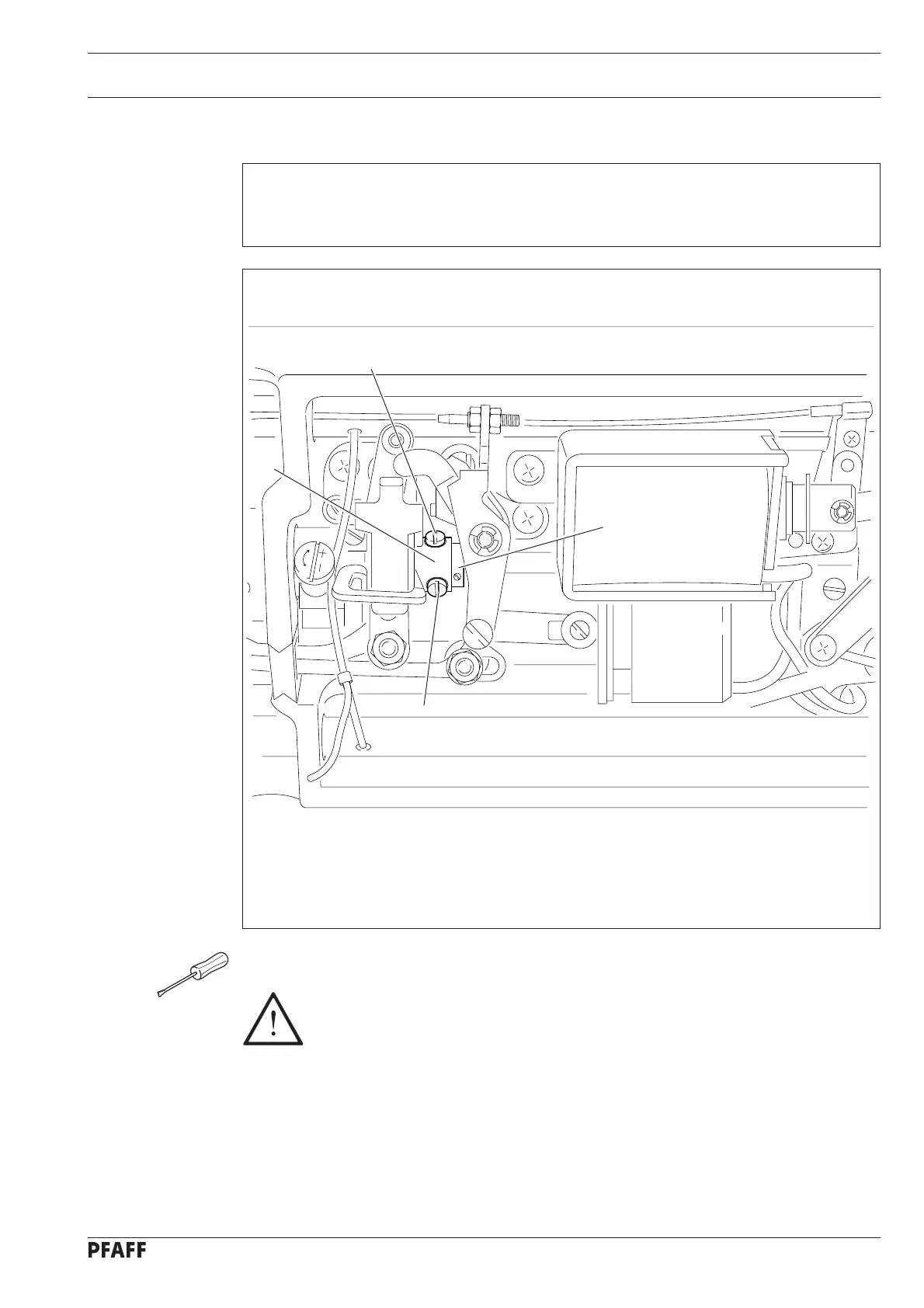

Fig. 13 - 10
13.05.02 Adjusting the control cam
Requirement
When the take-up lever is at its t.d.c., the cutting operation should have been concluded
(roller lever is pushed out of the control cam).
● Adjust control cam 1 (screws 2) in accordance with the requirement.
Make sure that the control cam 1 is touching retaining collar 3, when the
screws 2 are tightened!
76-061
2
2
1
3
