13.05.04 Needle thread tension release
Requirement
When magnets 3 are attracted, there should be a distance between the tension disks 4 of
at least 0.5 mm.

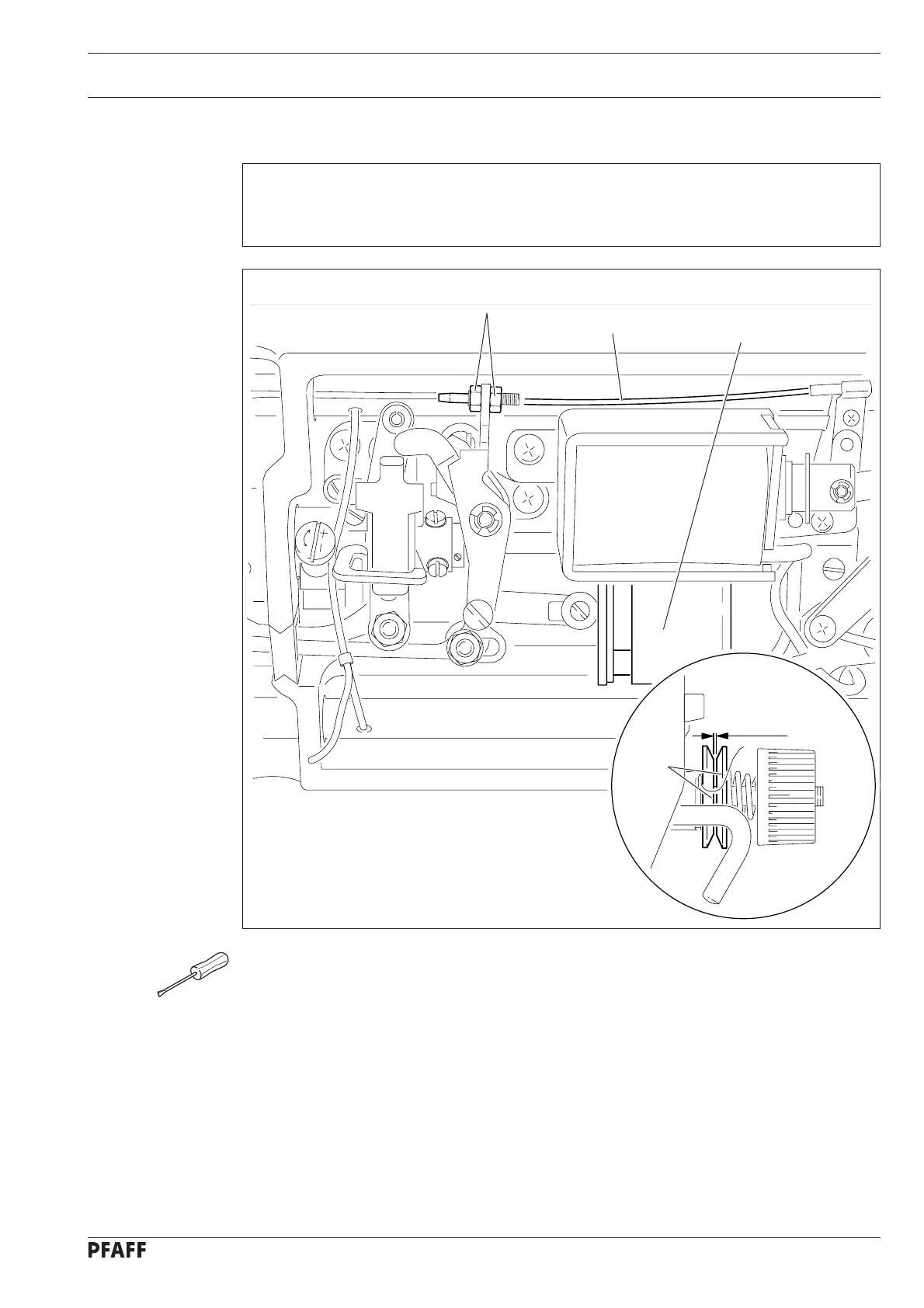

Fig. 13 - 12
● Adjust tension cable 1 (nuts 2) in accordance with the requirement.
76-068
0,5 mm
4
3
2
1
