8 - 2
Mounting and commissioning the mac
hine
8
.01.02
Garnrollenständer montieren
●

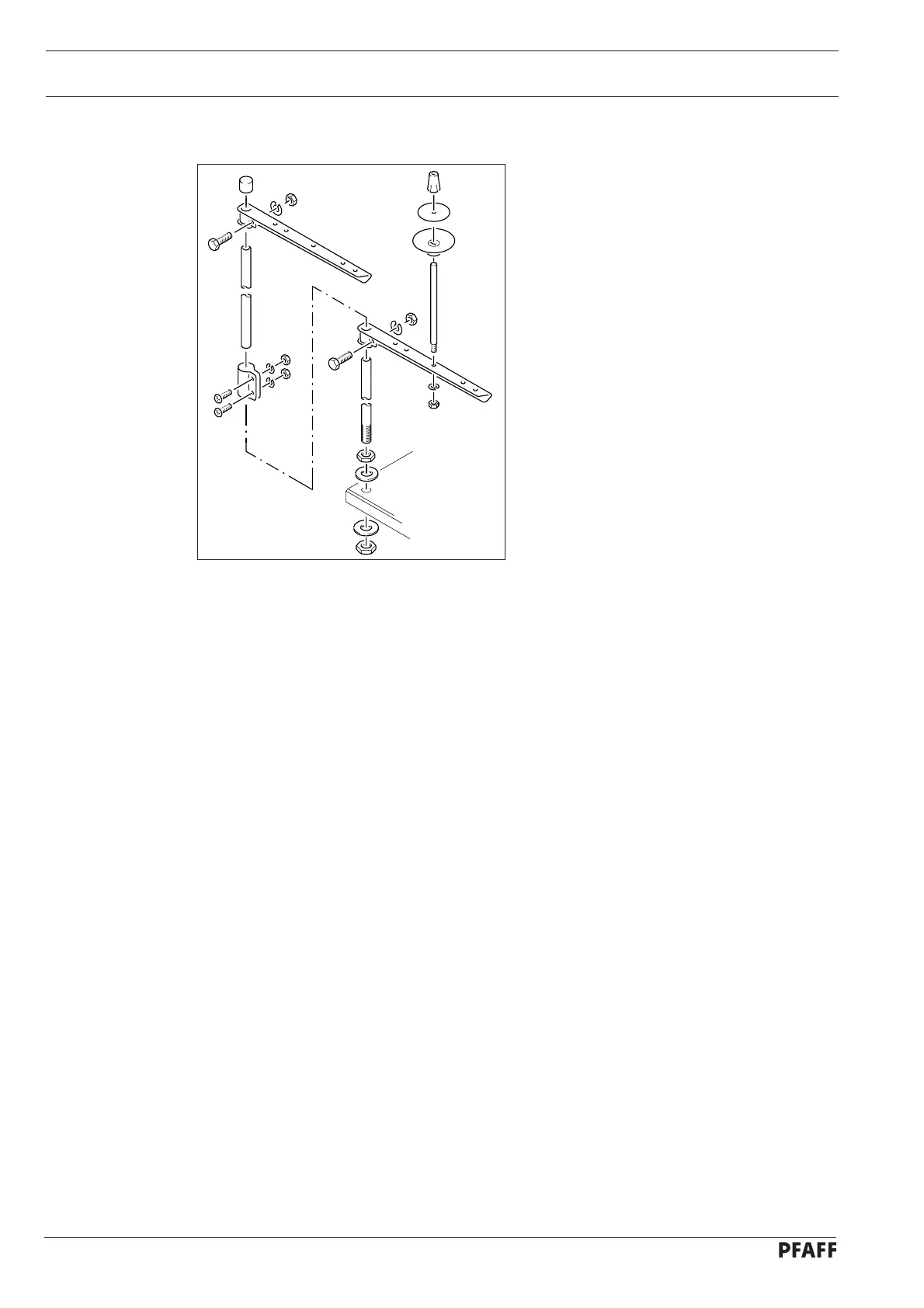

Garnrollenständer gemäß
Fig. 8-02
mon-
tieren.
●
Anschließend den Ständer in die
Bohrung der Tischplatte einsetzen und
mit den beiliegenden Muttern befestigen.
Fig. 8 - 02
17
19
