Pfaff 1183-712/02

8 - 3
Mounting and commissioning the machine
90-004
8.02 Connecting the plug-in connections and earth cables

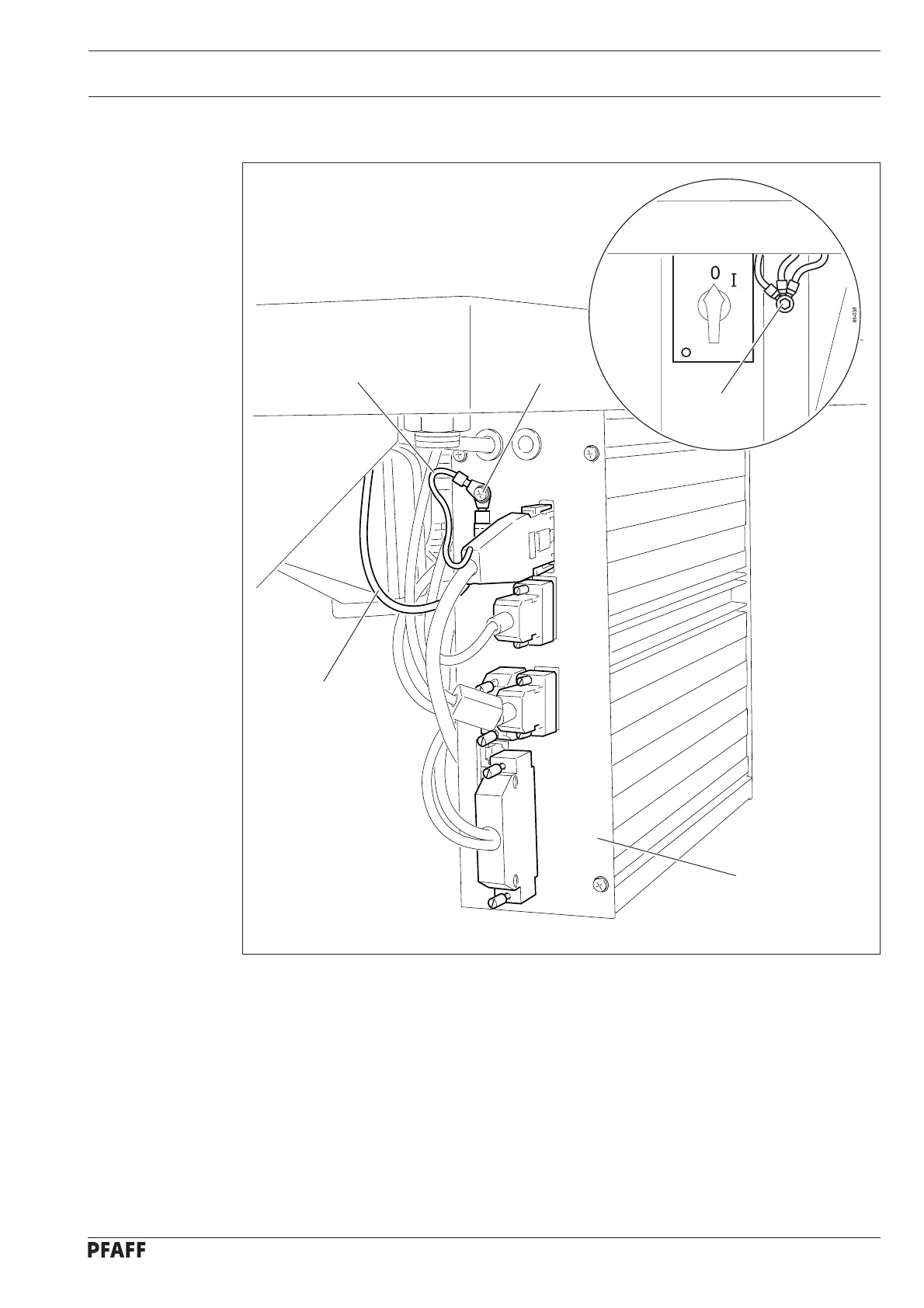

Fig. 8 - 03
● Connect all plugs as labelled to the control box 1.
● Screw the earth cable from the sewing head and the main switch to earth point A.
● Connect earth point A to earth point B with earth cable 2.
● Screw the earth cable 3 from the motor to earth point B.
A
3
1
2
B
