8 - 4
Installation and commissioning
8
.01.07

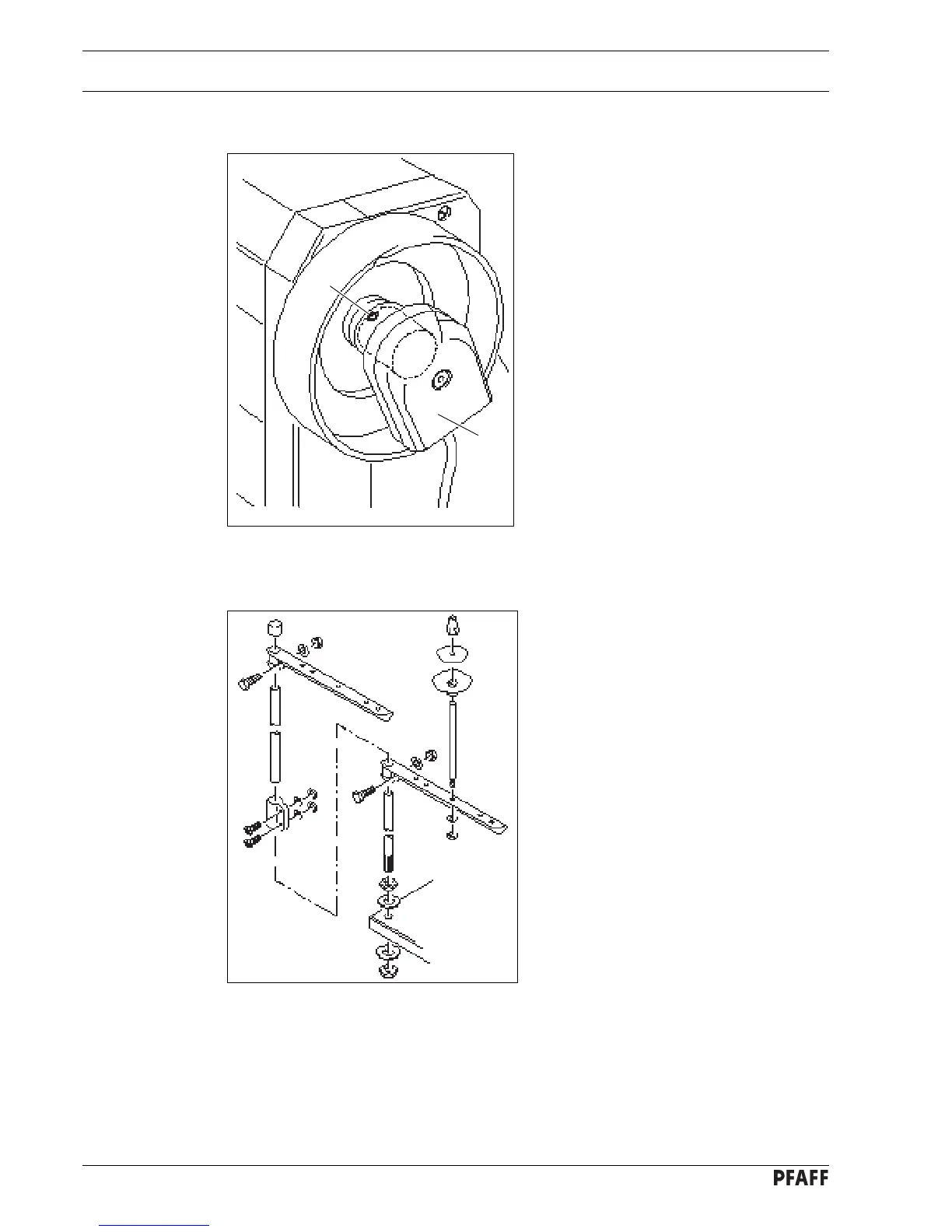

Fitting the reel stand
●
Fitting the reel stand as shown in
Fig. 8-07
.
●
Insert reel stand in the table-top hole and
fasten it with the included nuts.
Fig. 8 - 07
Fig. 8 - 06
8
.01.06
Fitting the synchronizer
●
Slide synchronizer
1
onto the shaft.
●
Slightly tighten screws
2
.
●
Insert plug of the synchronizer into the
control box.
●
Adjust synchronizer (see
Chapter
11.05.16 Adjusting the synchronizer
).
2
1
25
27
