Adjustment
11 - 9
11.04.08 Lifting motion of the feed dog (for PFAFF 242 and 1242)
Requirement
1. With the needle set at its BDC, the feed dog must be at its top point of reversal.
2. With the longest stitch set, the bottom feed dog must reach the top surface of the
needle plate at the same time as the needle point when the balance wheel is turned.
2
1

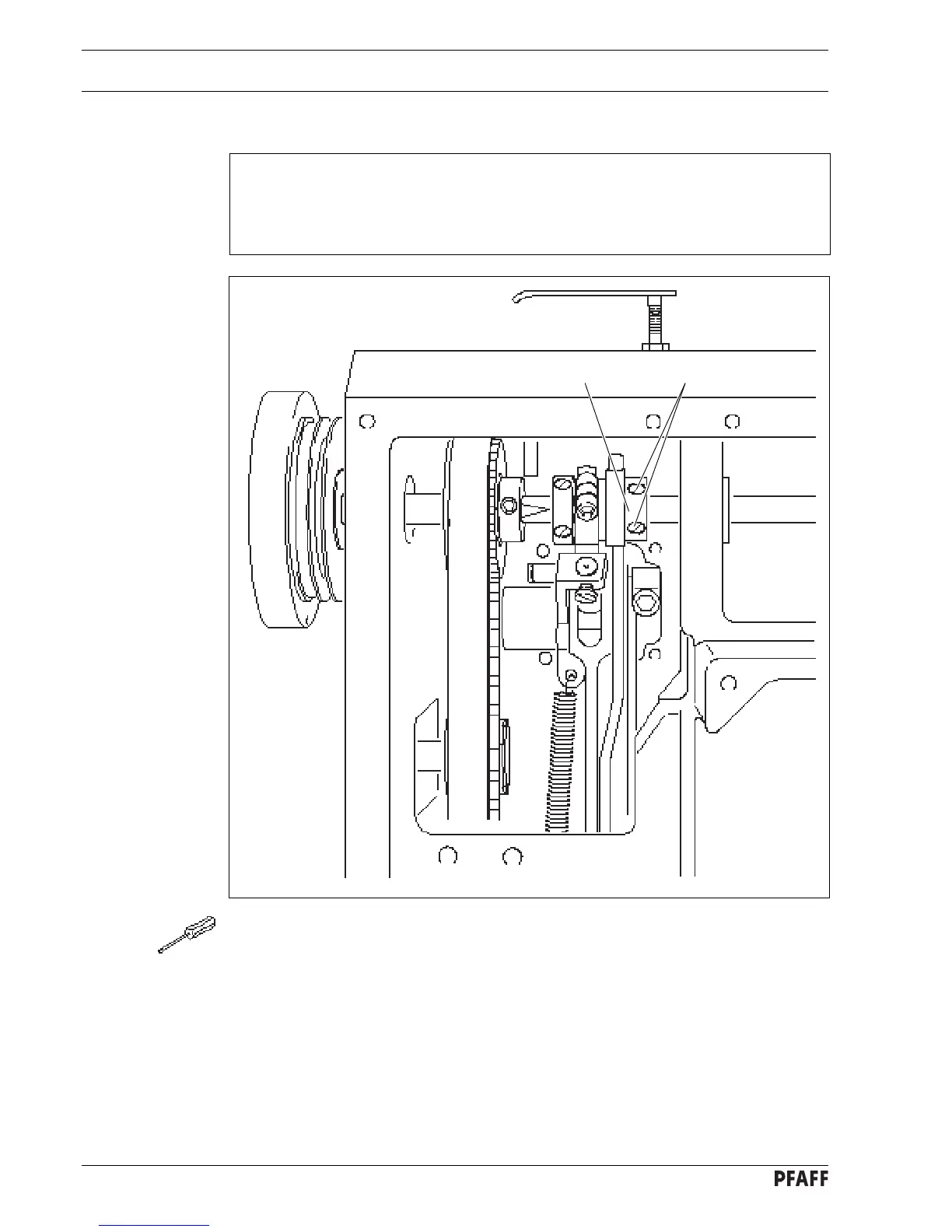

Fig. 11 - 08
l Bring the needle bar to its BDC.
l Turn eccentric 1 (screws 2) in accordance with requirement 1.
l In this position, tighten the accessible screw 2 until eccentric 1 can be turned with
difficulty.
l Turn eccentric 1 a little further in accordance with requirement 2.
l Tighten both screws 2.
