Pfaff 1244

Set-up and Initial Commissioning
22
 Loosen the screws 2 and align the belt guard bracket 1 so that the motor pulley and
V-belt run freely.
 Use screw 4 to tighten the screws 2 and the belt guard 3.

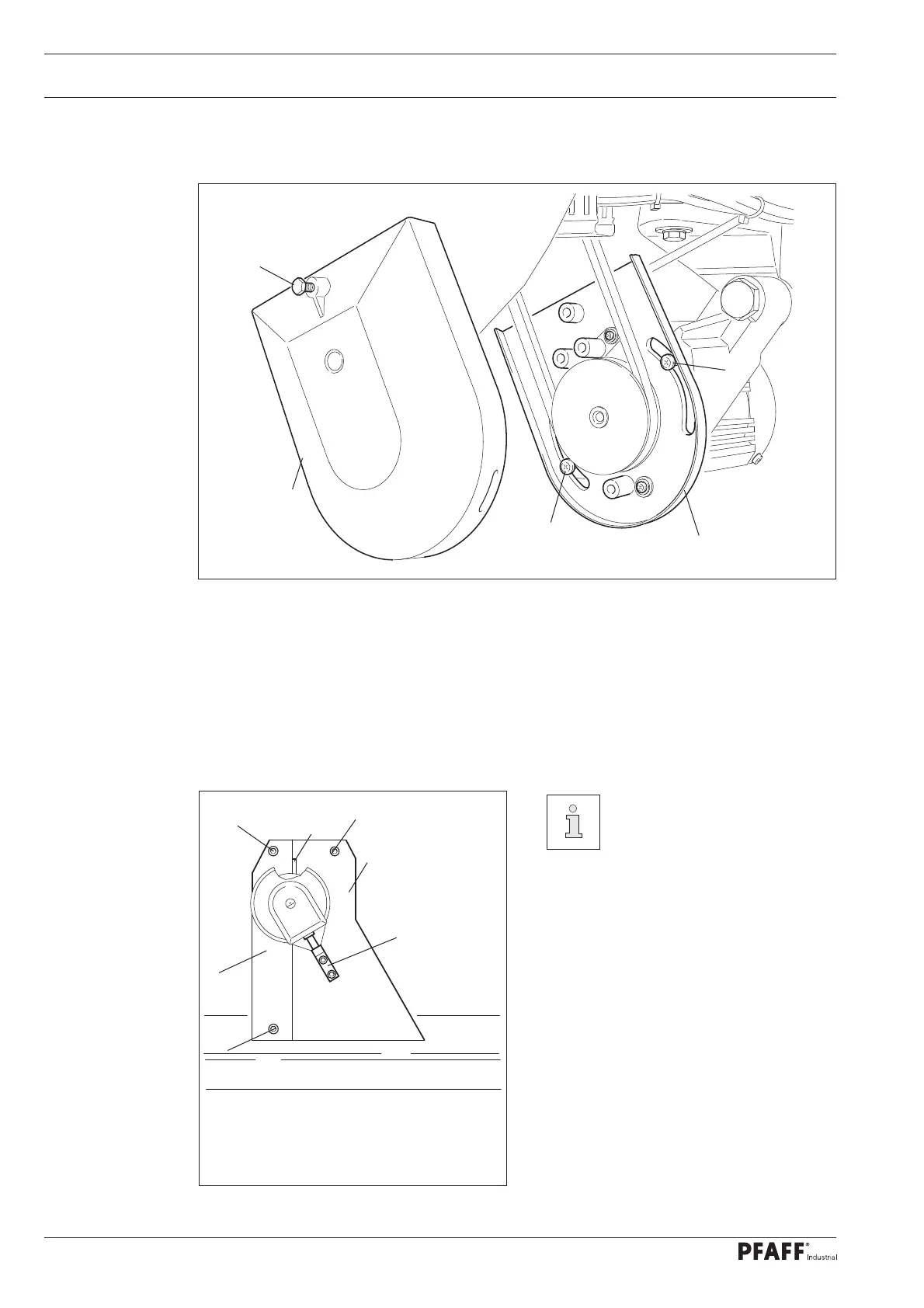

8.01.05 Mounting the lower V-belt pulley
Fig. 8 - 05
1
2
3
4
2
8
.01.06 Assembling the upper V-belt guard
1
2
Fig. 8 - 06
The corner 1 of the belt guard
part 3 should be broken off
when using a large handwheel.
 Screw the position fi nger 2 to the belt
guard part 3
 Use the screws 4 to screw on the belt
guard part 3
 Use the screws 6 to screw on the belt
guard part 5
3
5
6
6
4
