Pfaff 1244 - 8.03 Reel Stand Assembly

Set-up and Initial Commissioning
25
8.03 Assembling the reel stand

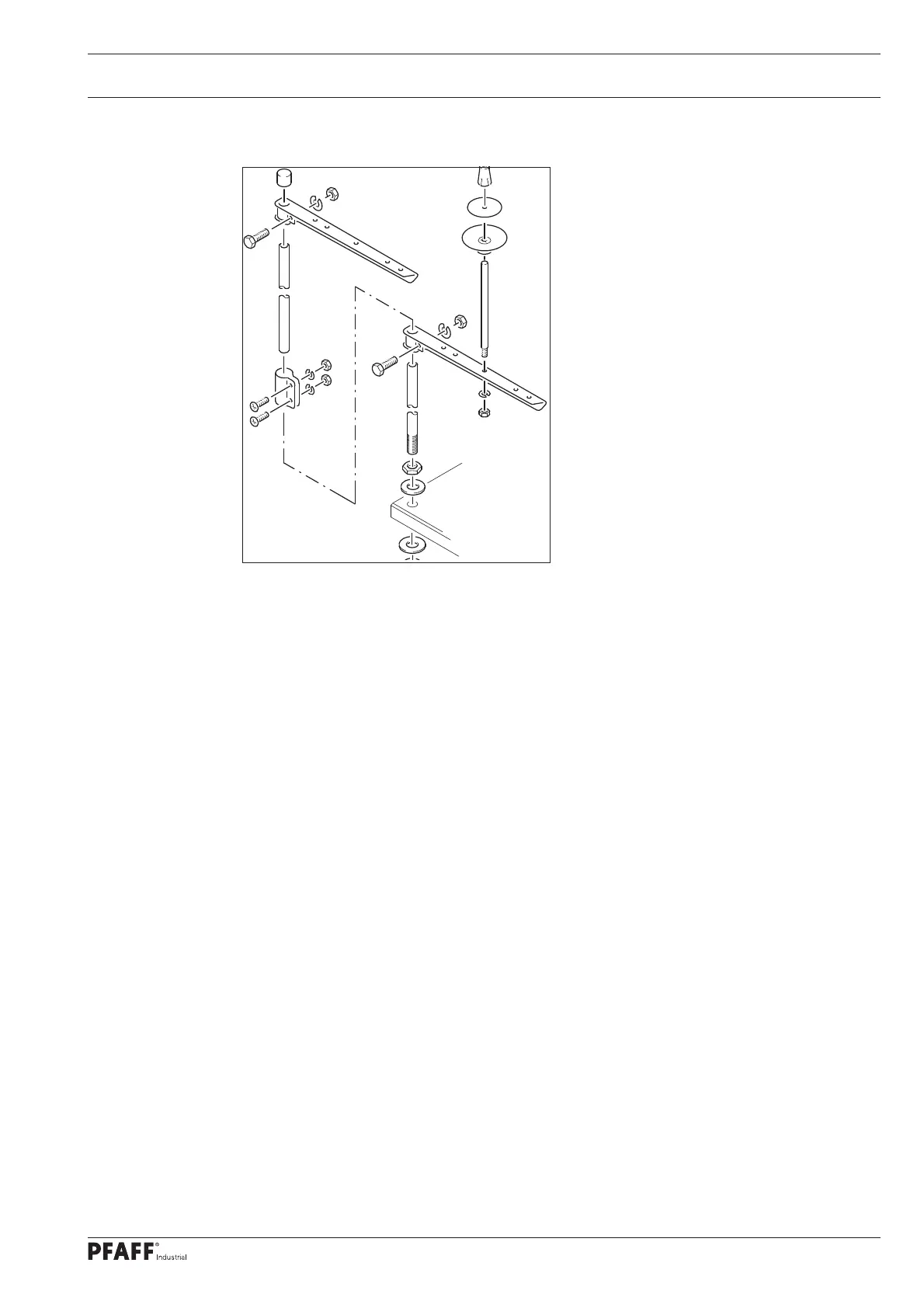

 Assemble the reel stand as shown in the
adjacent illustration.
 Then insert the stand into the hole in
the table top and secure it with the
enclosed nuts.
Fig. 8 - 10
