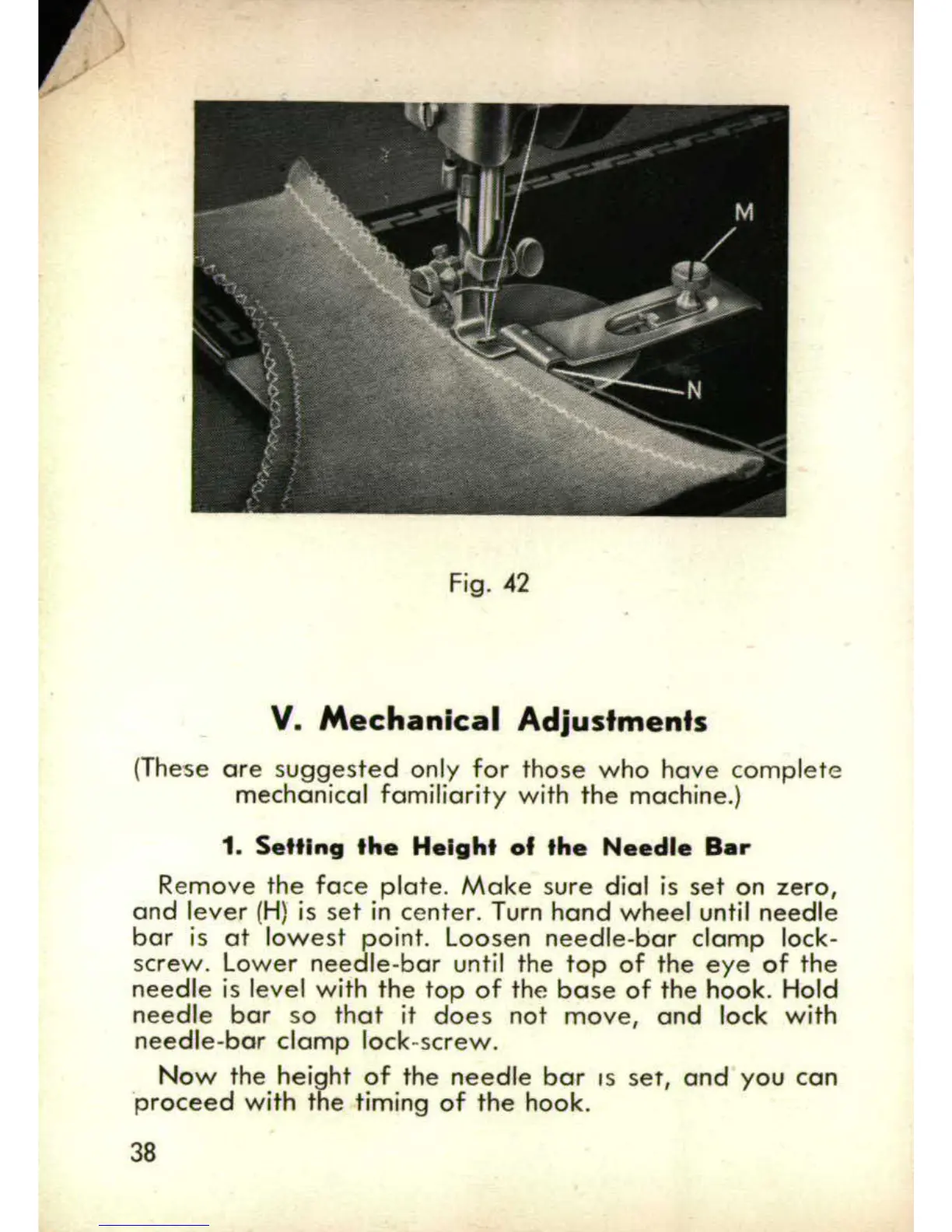

Fig.
42
V.
Mechanical
Adjustments
(These
are
suggested
only
for
those
who
have
complete
mechanical
familiarity
with
the
machine.)
1.
Settling
the
Height
of
ihe
Needle
Bar
Remove
the
face
plate.
Make
sure
dial
is
set
on
zero,
and
lever
(H)
is
set
in
center.
Turn
hand
wheel
until
needle
bar
is
at
lowest
point.
Loosen
needle-bar
clamp
lock-
screw.
Lower
needle-bar
until
the
top
of
the
eye
of
the
needle
is
level
with
the
top
of
the
base
of
the
hook.
Hold
needle
bar
so
that
it
does
not
move,
and
lock
with
needle-bar
clamp
lock-screw.
Now
the
height
of
the
needle
bar
is
set,
and
you
can
proceed
with
the
timing
of
the
hook.
38
