8 - 5
Installation and commissioning
58.011
8.01.08 Connecting the earth cables
● Connect all the couplers coming from the
machine in the control box as
designated.

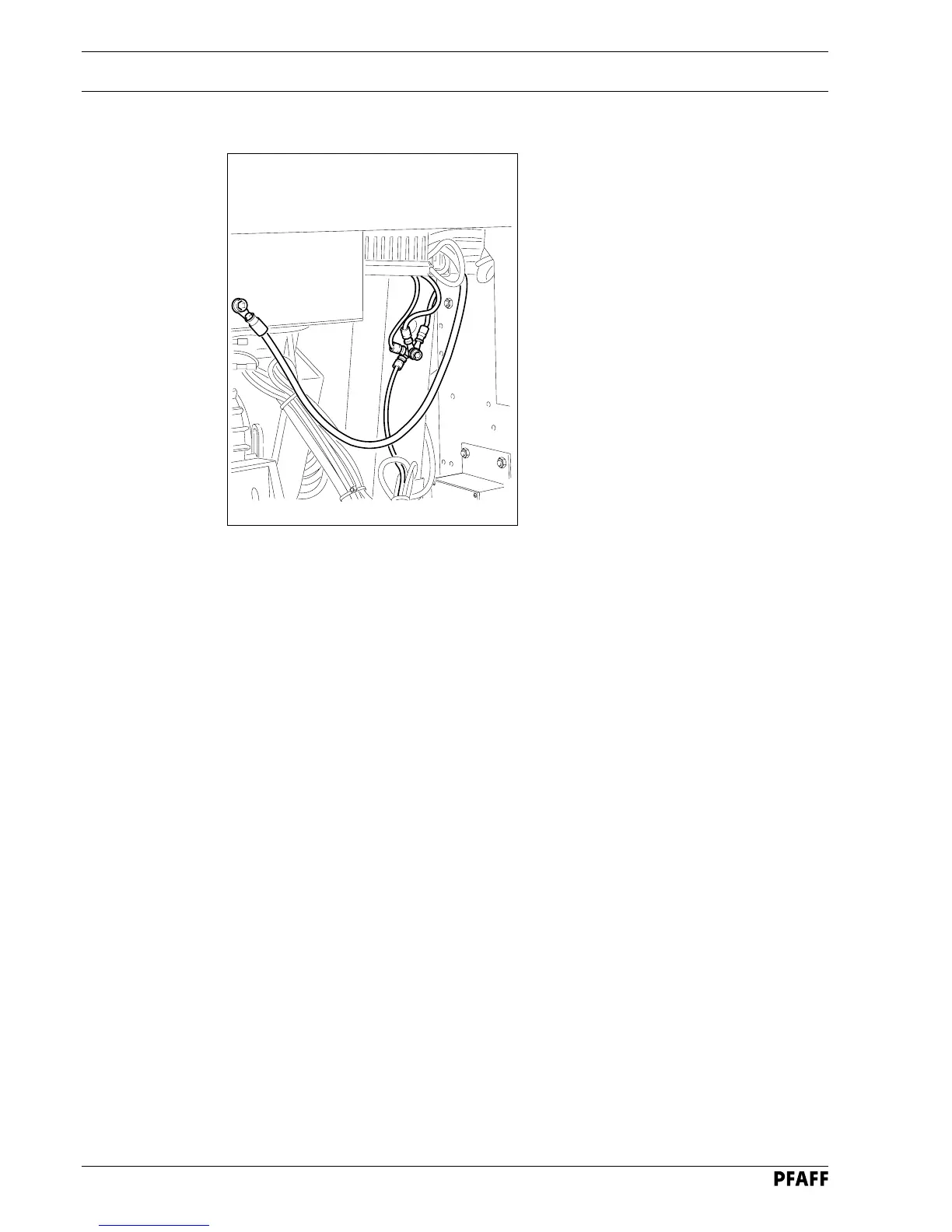

● Screw attach the earth cables from the
sewing head, motor, on-off switch and
work aids to the frame.
Fig. 8 - 08
