Pfaff 1426

To Next Page

To Previous Page

11 - 3

Adjustment

58.036

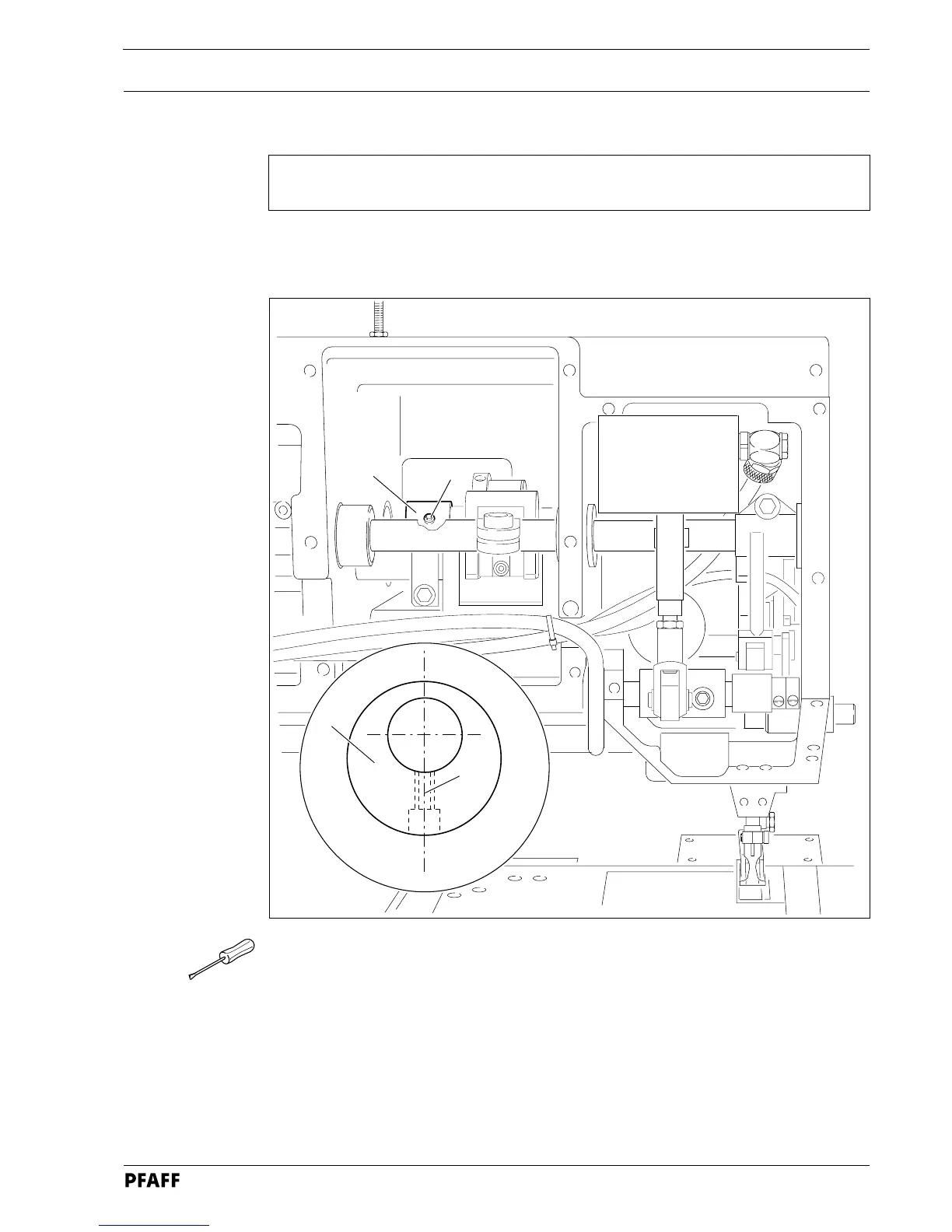

Fig. 11 - 02

11.04.02 Balance weight

Requirement

At needle bar t.d.c. the eccentric lobe of balance weight 1 must face downwards.

● Adjust balance weight 1 (screw 2) according to Requirement.
