Pfaff 1426 - Thread-Catcher Transmission Crank (Only on PFAFF 1426 )

11 - 38
Adjustment

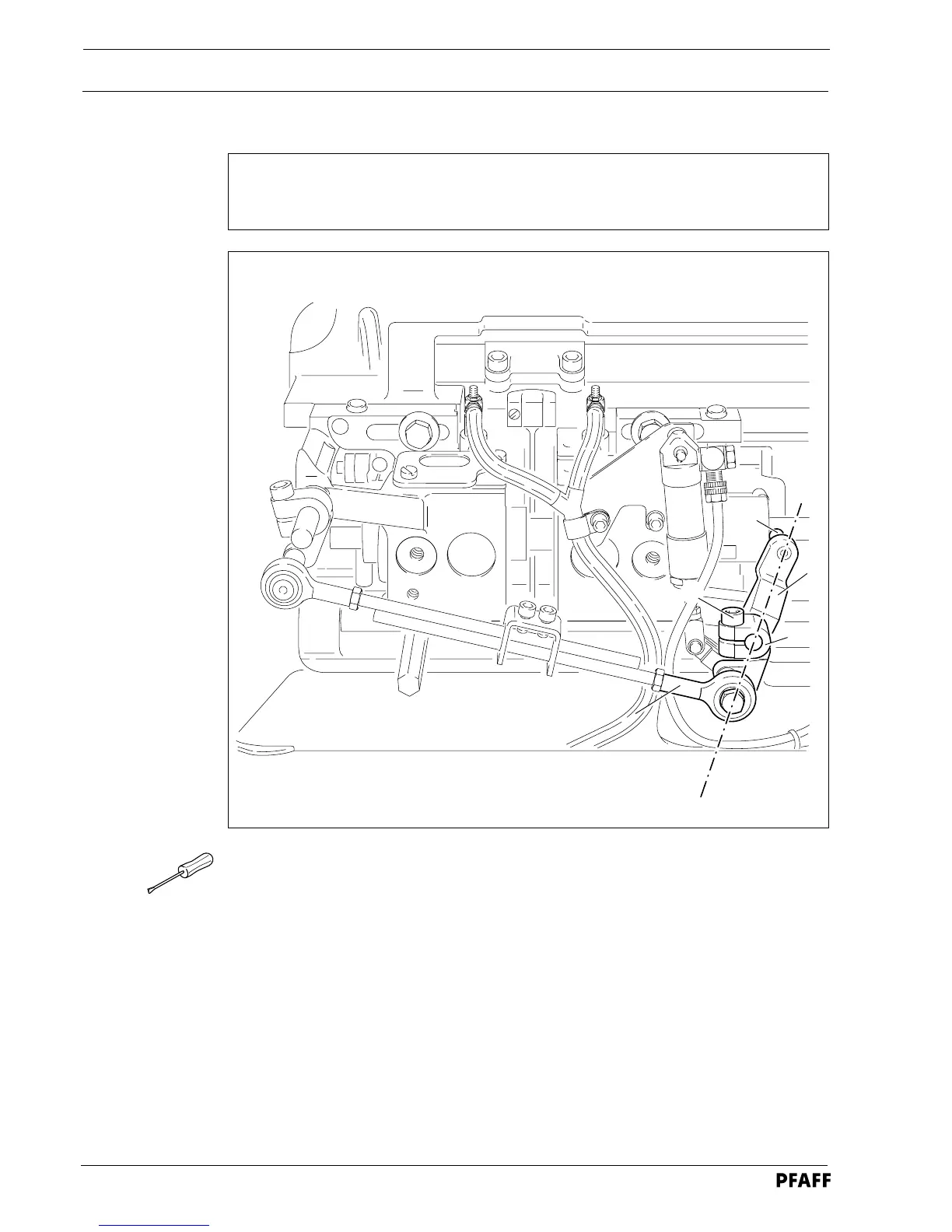

Fig. 11 - 35
3
4
2
1
5
11.06.07 Thread catcher transmission crank (only on the PFAFF 1426 )
Requirement
With the thread trimmer in its resting position the bearing points of roller 3, roller lever 4
and ball-joint 5 must be aligned.
● Set thread trimmer at resting position.
● Turn transmission crank 1 (screw 2) according to Requirement.
