Adjustment
13.05 Adjusting the edge trimmer -725/04 for the 1471E1
13.05.01 Position of the knife carrier
Requirement
With the edge trimmer switched on and the adjusting wheel turned upwards as far as it
will go,
1. the knife carrier 2 must be parallel to the post and
2. the upper edge of the needle plate must be centered with respect to the knife bracket.
● Turn the adjusting wheel 1 upwards as far as it will go and switch on the edge trimmer.
● Adjust the knife carrier 2 ( screw 3 ) according to the requirements.

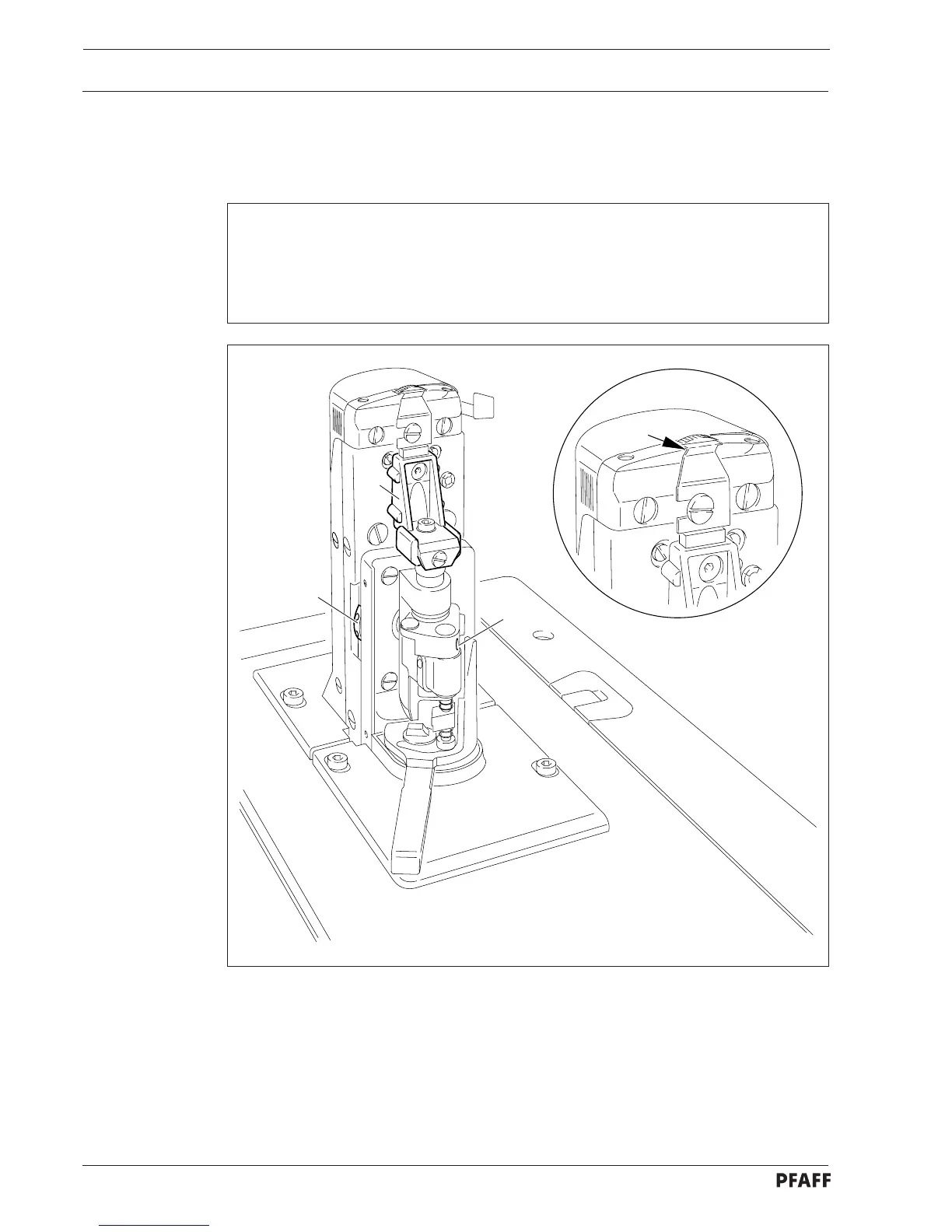

Fig. 13 - 24
1
2
3
13 - 29
