Preparation
9.02 Inserting the needle in the 1474E1
Turn the machine off!
Use only system 134-35 needles.
● Raise roller-presser 1.
● Swing the eye guard up.
● Pull roller-presser 1 down slightly and
swing it out to the left.
● Loosen screw 2 and insert needles 3
and 4 so that the long groove of the left
needle 3 is facing to the right, and that of
the right needle 4 is facing to the left.
● Tighten screw 2 and swing the roller-
presser back into position.

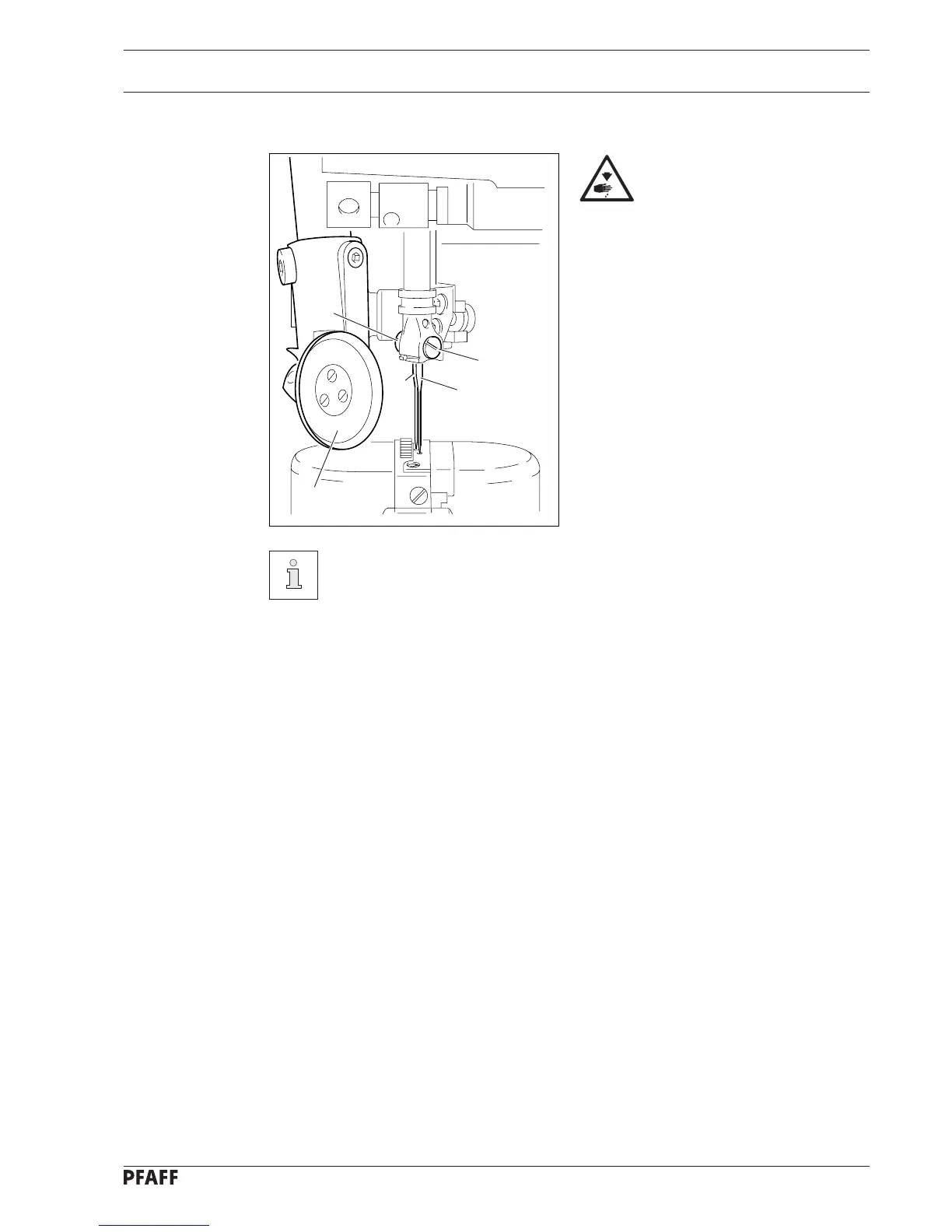

Fig. 9 - 02
Selection of the correct needle depends on the model of the machine as well
as the material and threads being sewn (see chapter 3.02 Needle and thread).
1
2
2
4
3
9 - 2
