Adjustment
● Insert the adjustment pin in hole 5 and apply pressure.
● Position the hook point at the middle of the needle, taking care to ensure that the needle
does not shear off because of the needle guard 6.
● Adjust the needle height according to requirement 2.
● Move the hook post according to requirement 1 and tighten screws 4.
● Remove the adjustment pin from the hole 5.
● Observing the play of the bevel pinion 8, tighten screws 2.
● Bring retaining collar 7 to rest on bevel pinion 8, and tighten screws 1 and 3.
● Position needle guard 6 according to requirement 3.

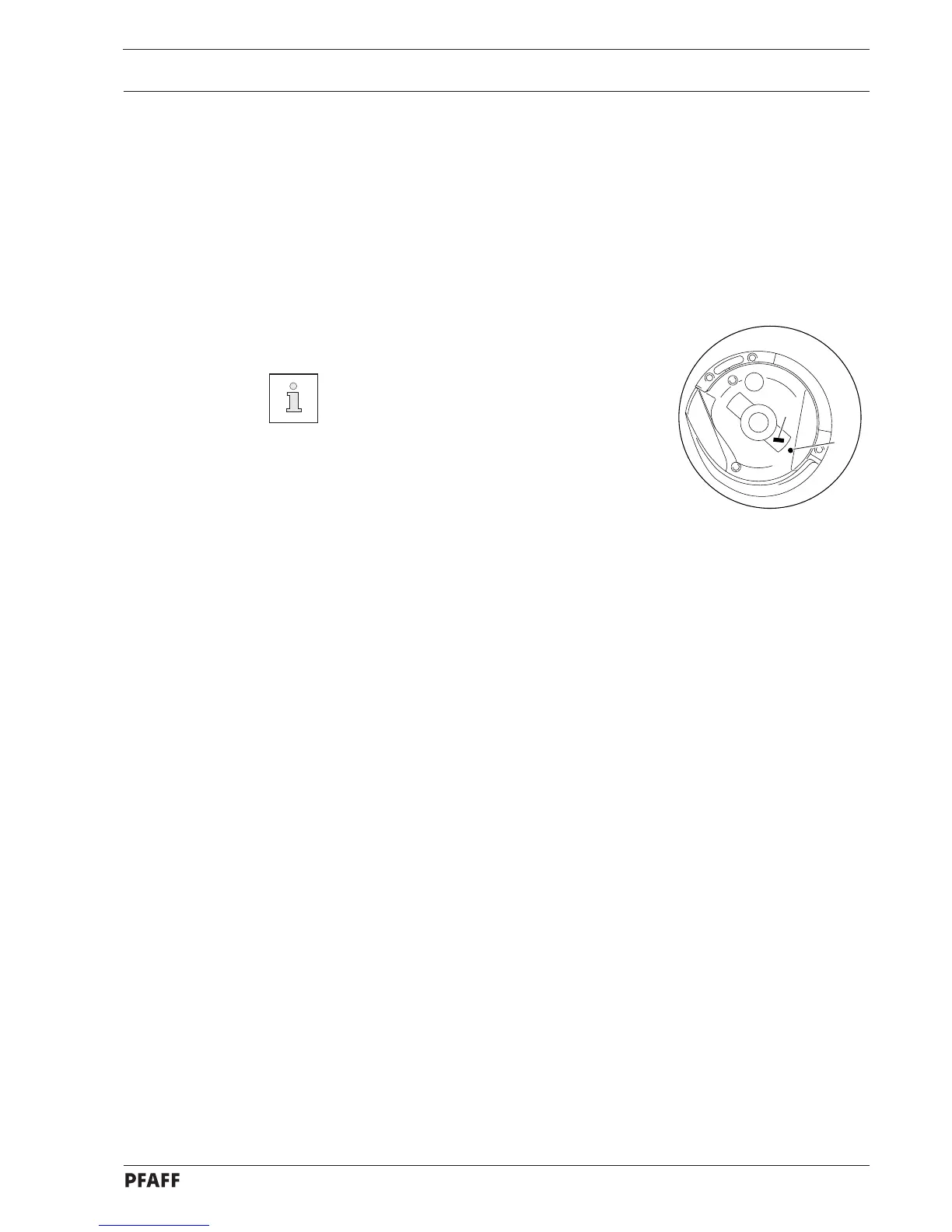

When changing the hook, ensure that markings
9 and 10 are both on the same side.
10
9
13 - 10
