Adjustment
● Adjust the needle height according to requirement 2.
● Move both hook posts according to requirement 1 and tighten screws 8.
● Remove the adjustment pin from the hole 9.
● Observing the play of the bevel pinion, tighten screws 2 and 4.
● Bring retaining collar 11 to rest on bevel pinion 12, and tighten screws 3.
● Bring retaining collar 13 to rest on bevel pinion 14, and tighten screws 5.
● Tighten screws 7 to both sides of the post.
● Position needle guards 10 according to requirement 3.

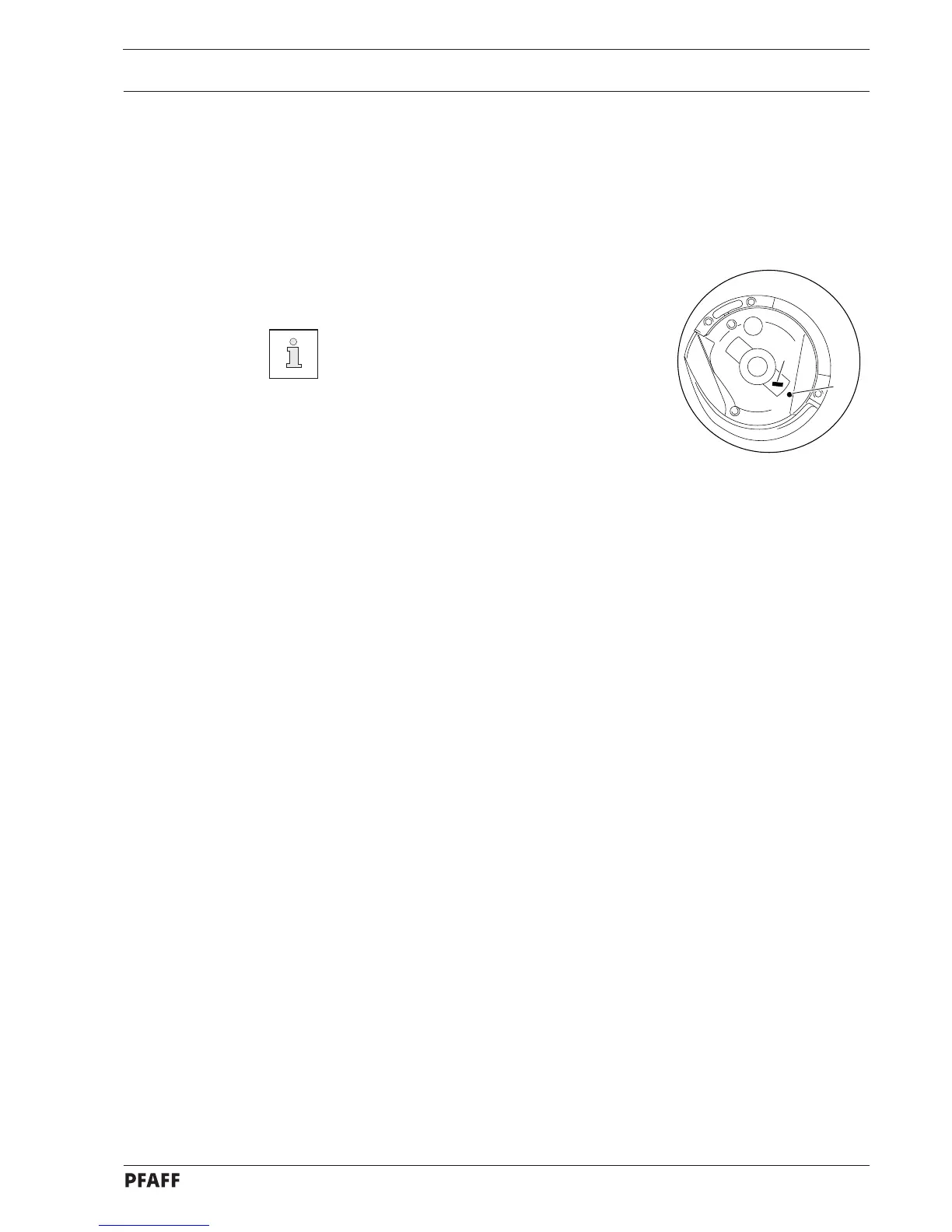

When changing the hook, ensure that markings
15 and 16 are both on the same side.
16
15
13 - 12
