Pfaff 1526

11 - 11
Adjustment
58.027
58.028
Fig. 11 - 09
2
1
19 mm

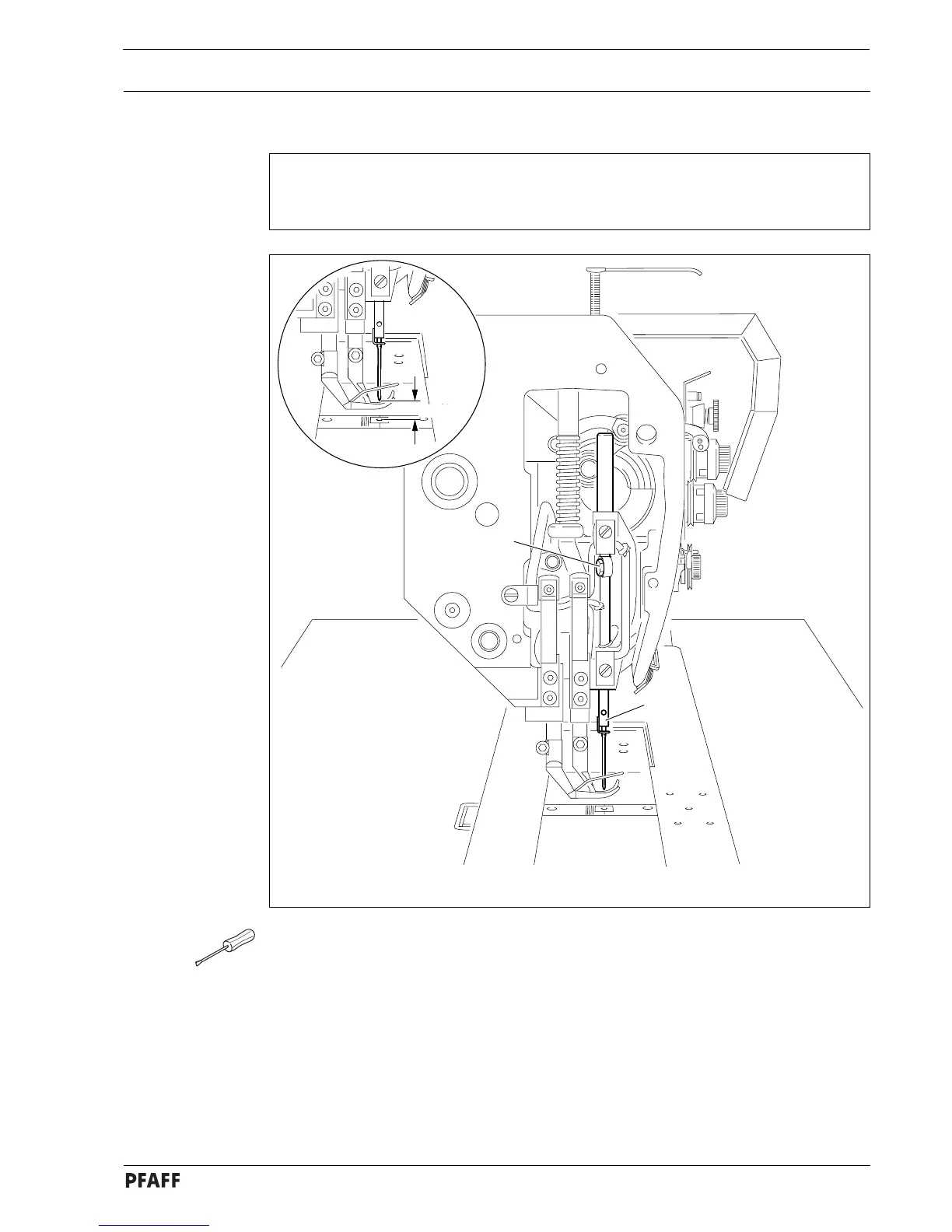

11.04.09 Needle height (preliminary adjustment)
Requirement
At needle-bar t.d.c. the clearance between needle point and needle plate must be approx.
19 mm.
● Re-position needle bar 1 (screw 2), without turning it, according to Requirement.
