Adjustment

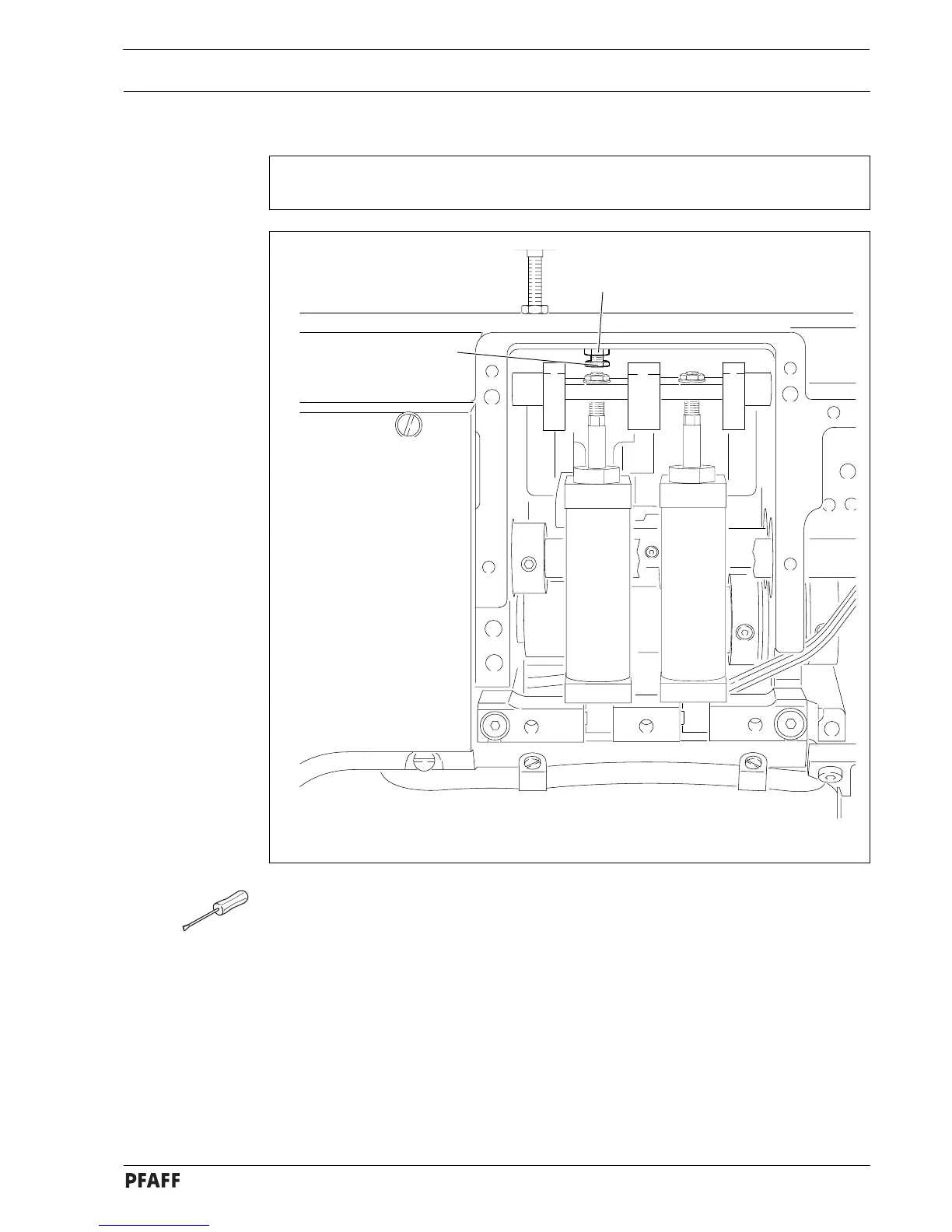

Fig. 11 - 23

● Engage edge trimmer.

● Adjust screw 1 (nut 2) according to Requirement.

11.05.02 Knife stroke

Requirement

The maximum knife stroke must be 9 mm
