3
4
1 mm

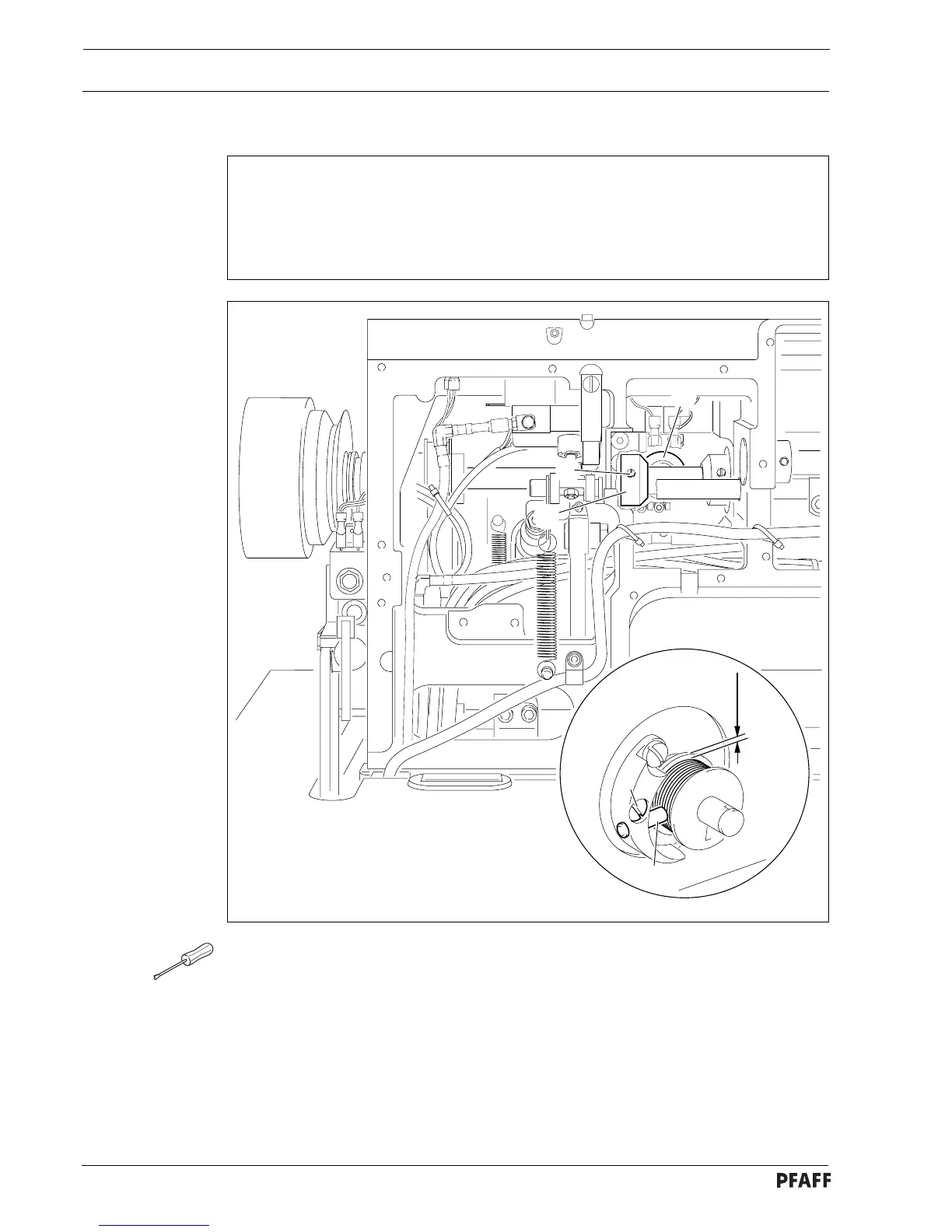

Fig. 11 - 15
2
5
1
11.04.15 Bobbin winder
Requirement
1. When the bobbin winder is engaged, the winding spindle must be driven reliably; when
it is disengaged, friction wheel 5 must not rest on driving wheel 1.
2. The bobbin winder must wind evenly and switch itself off when the filled thread is
about 1 mm from the edge of the bobbin.
● Position drive wheel 1 (screw 2) according to Requirement 1.
● Position adjusting pin 3 (screw 4) according to Requirement 2.
