11 - 43
Adjustment
11.07.02 Thread catcher and knife height
Requirement
1. There should be a clearance of 0.6 mm between the lower edge of the thread catcher 1
and the bobbin case 2.
2. When the thread trimmer is in its resting position the upper edges of knife 3 and thread
catcher 1 should be at the same level.
The thread catcher and knife height is pre-set by the manufacturer and can only
be corrected by placing washers under the thread catcher or knife mounting
(see arrow).

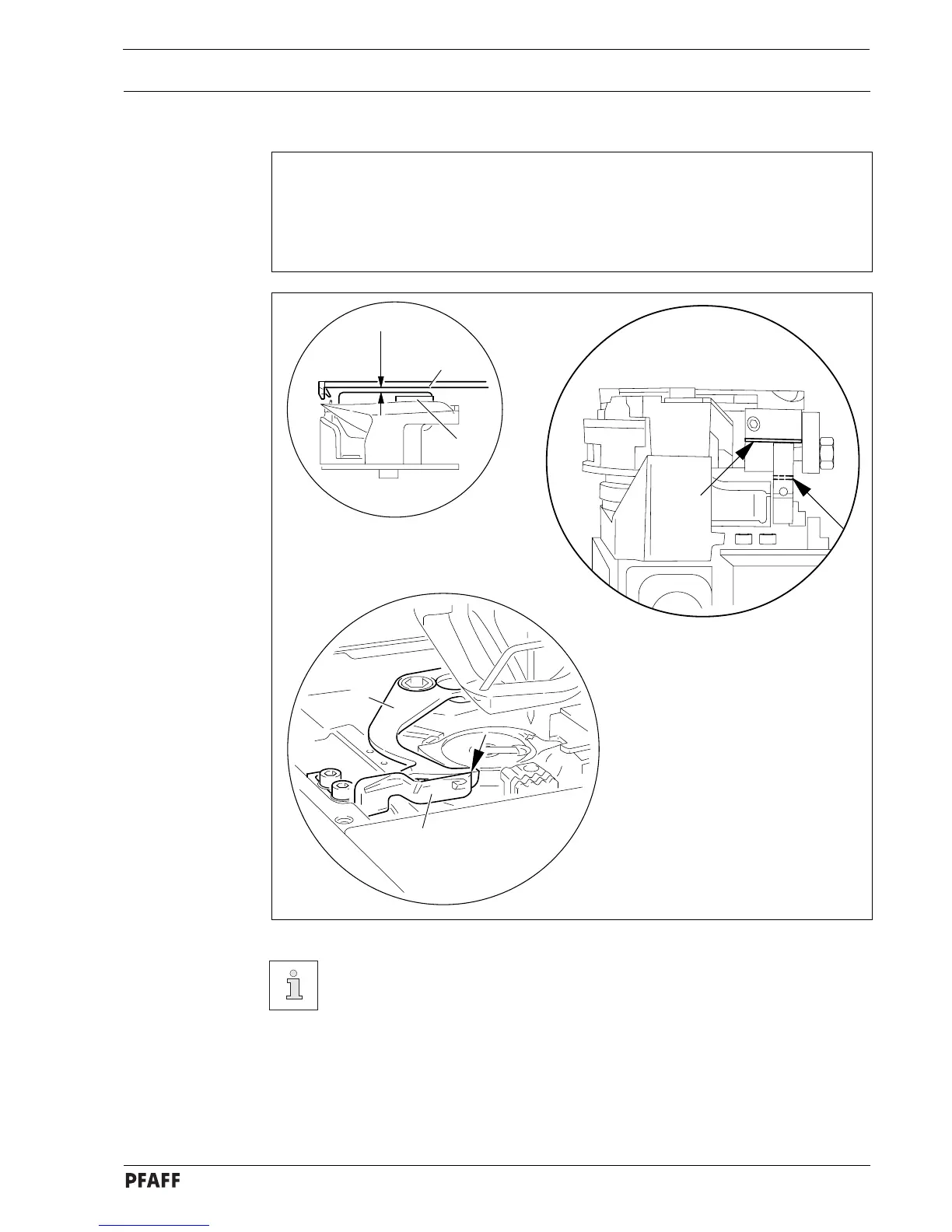

Fig. 11 - 39
1
2
0.6 mm
3
1
