11.05 Adjusting the edge trimmer -731/02
11.05.01 Neutral position of knife
Requirement
When the edge trimmer is disengaged, the knife must not move when the balance wheel
is turned.
● Turn on compressed air and disengage edge trimmer.
● Turn cylinder plunger 1 (nut 2) according to Requirement.

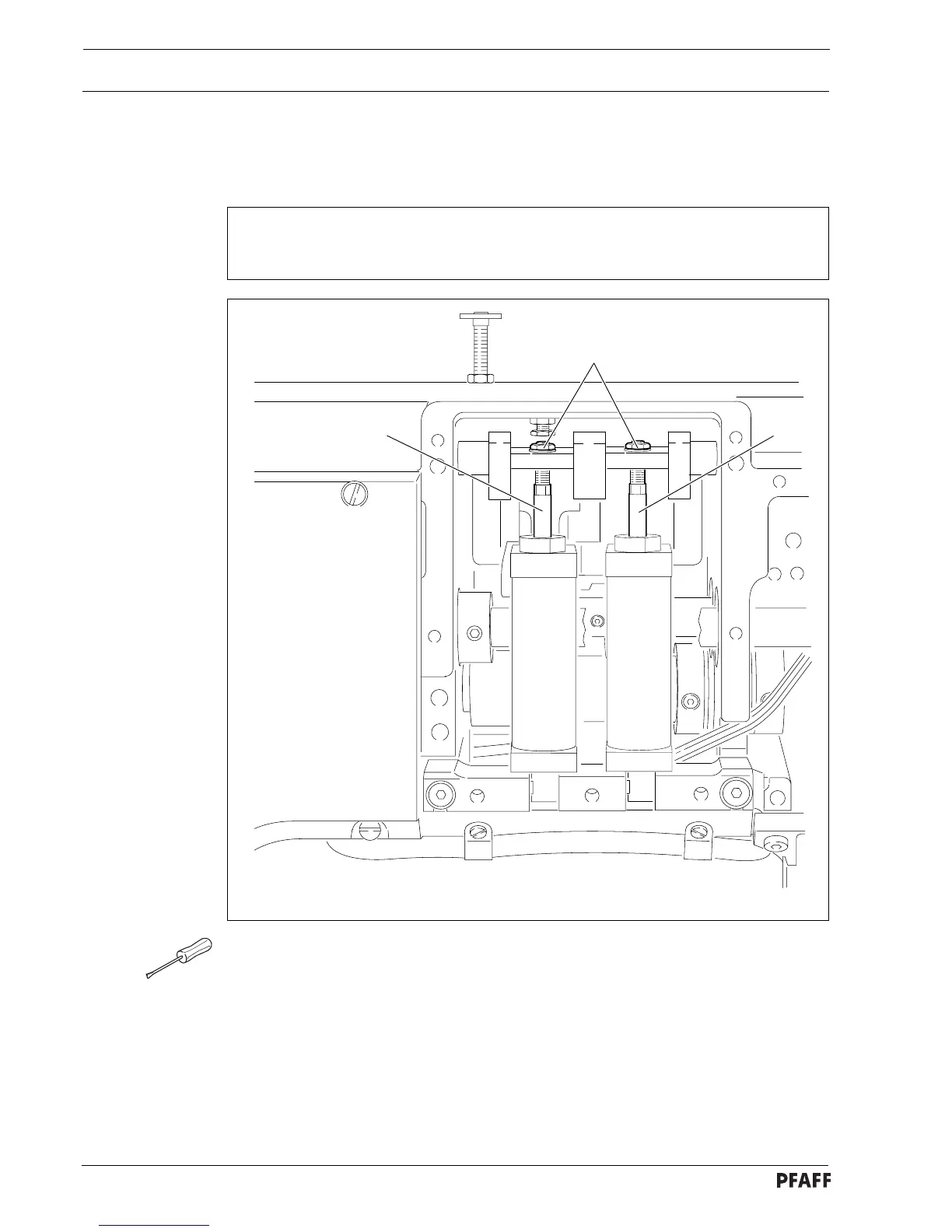

Fig. 11 - 22
1
2
1
