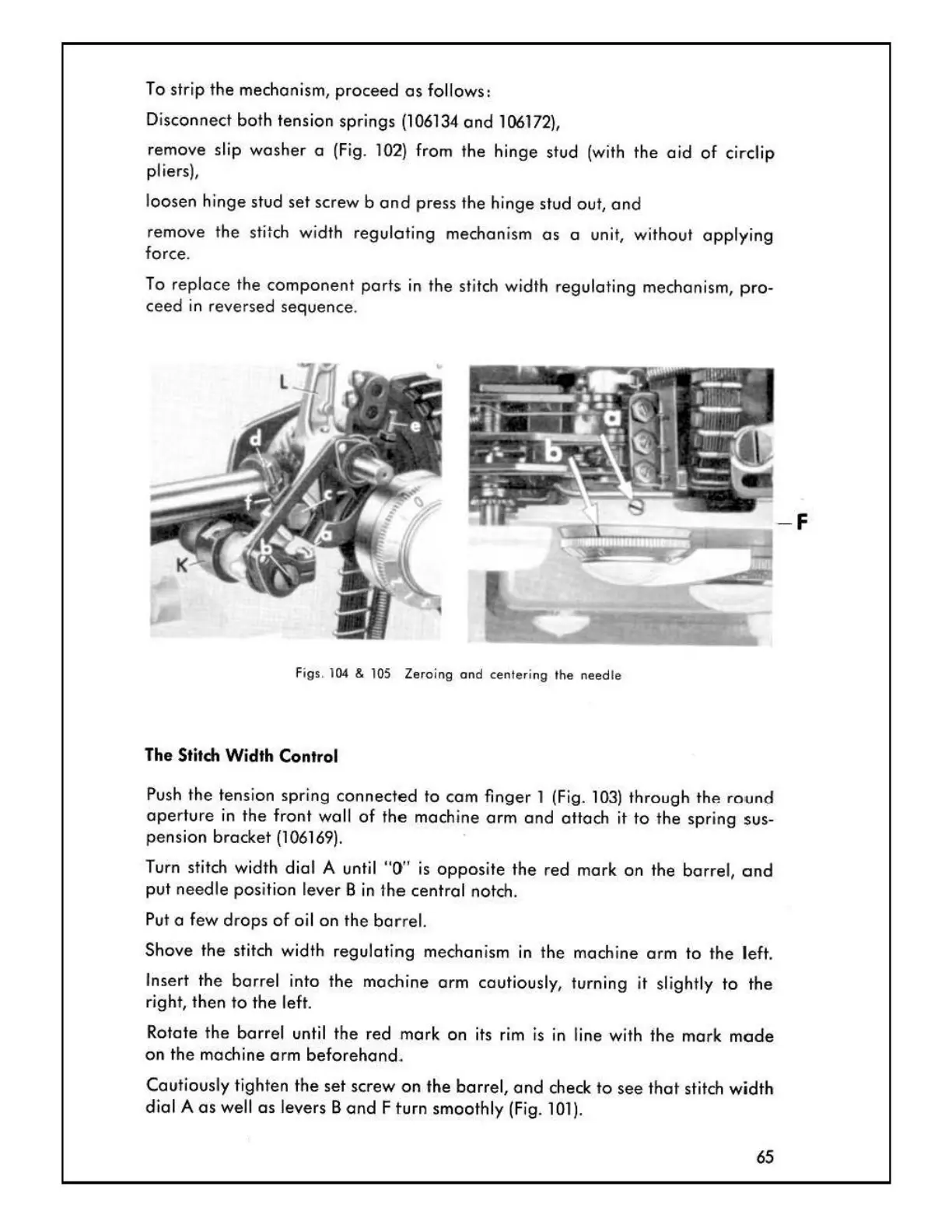

To strip the mechanism, proceed as follows:
Disconnect both tension springs {106134 and 106172),
remove slip washer o (Fig. 102) from the hinge stud (with the aid of circlip
pi iers),
loosen hinge stud set screw band press the hinge stud out, and
remove t he s ti tch width regulating mechanism as o unit, without applying
force.
To
replace the component ports in the stitch width regulating mechanism, pro-
ceed in r eversed sequence .
Figs. 1 04 & 10 5 Zeroing and centering the needle
Th e St i tch Width Con t rol
Push the tension spring connected to com finger 1 (F ig. 103) through the rou nd
aperture in the front wall of the machine arm and attach it to the spr ing sus-
pension brocket {106169).
Turn stitch
width dial A until "0 " is opposite the red mark on the barre l, and
put needle position lever B in the central notch.
Put o
few drops of oil on the barrel.
Shove the stitch width regulating mechanism in the machi ne arm to the left .
Insert
the barrel into the machine arm cautiously, turning it slightly to the
ri ght, then to the left.
Rotate the barrel until the red mark on its rim is in line with fhe mark made
on the machine arm before h and .
Cautiously tighten the set screw on the barre l, and check to see that stitch width
dial A as well as levers Band F turn smoothly (Fig. 101 ).
65

Pfaff 360 Specifications

General

Type	Mechanical
Free Arm	Yes
Presser Foot Pressure	Adjustable
Built-in Needle Threader	No
Stitch Functions	Straight stitch, zigzag stitch, decorative stitches
Needle Position	Adjustable
Stitch Width	Up to 5mm
Buttonhole Styles	4-step
Presser Feet	Buttonhole
