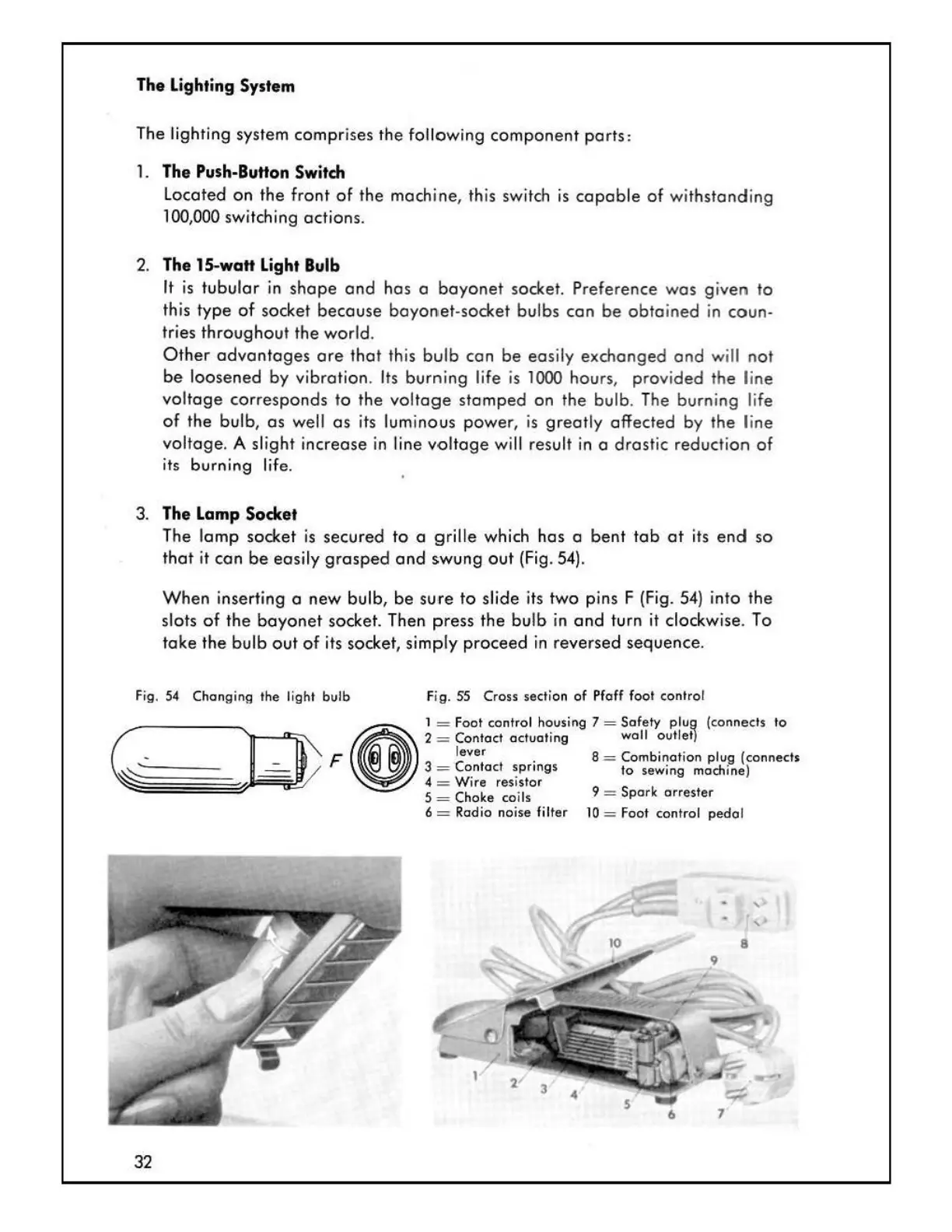

The lighting System
The lighting system comprises the following component parts:
1. The Push-Button Sw i tch
Located on the front of the machine, this switch is capable of withstanding
100,000 switching actions.
2. The 15-wattlight Bulb
It is tubular in shape and has a bayonet socket. Preference was given to
this type of socket because bayo net-socket bulbs con be obta in ed in coun-
tri es throughout the world.
Other advantages are that this bulb can be easily exchanged and will not
be loosened by vibration. Its burn i ng life is 1000 hours, prov i ded the line
voltage corresponds to the voltage stamped on the bulb. T he burning li fe
of the bulb, as well as its luminous power , is great ly affected by the line
voltage. A slight increase in line voltage will result in a drastic reduction of
its burning life.
3. The Lamp Socket
The lamp socket is secured to a grille which has a bent tab at its end so
that it can be easily grasped and swung out (Fig. 54).
When inserting a new bulb, be sure to slide its two pins F (Fig. 54) into the
slots of the bayonet socket. Then press the bulb in and turn it clockwise. To
take the bulb out of its socket, simply proceed in reversed sequence.
Fig. 54 Chang ing the light bulb Fig. 55 Cross section of Pfaff foot control
6 7
32

Pfaff 360 Specifications

General

Type	Mechanical
Free Arm	Yes
Presser Foot Pressure	Adjustable
Built-in Needle Threader	No
Stitch Functions	Straight stitch, zigzag stitch, decorative stitches
Needle Position	Adjustable
Stitch Width	Up to 5mm
Buttonhole Styles	4-step
Presser Feet	Buttonhole
