If
adjustment
is
required, turn eccentric stud B (Fig.
106)
to
the
right
or
left,
as
appropriate.
c. Centering the
Needle
in the
Needle
Plate Slot
Set stitch width dial A on "0"
and
needle position lever B
at
its central
position.
Check to
see
that
the
needle
is
correctly centered
in
the
needle
plate slot.
To adjust, turn eccentric stud A
in
the needle
bar
frame pitman (Fig. 1
07)
to
the right
or
left until
the
above-mentioned condition
is
met.
Important
Since settings
a,
b,
and
c
ore
correlated,
repeat
each check
and,
if
necessary,
readjust.
After the adjustment has
been
completed, tighten all set screws securely.

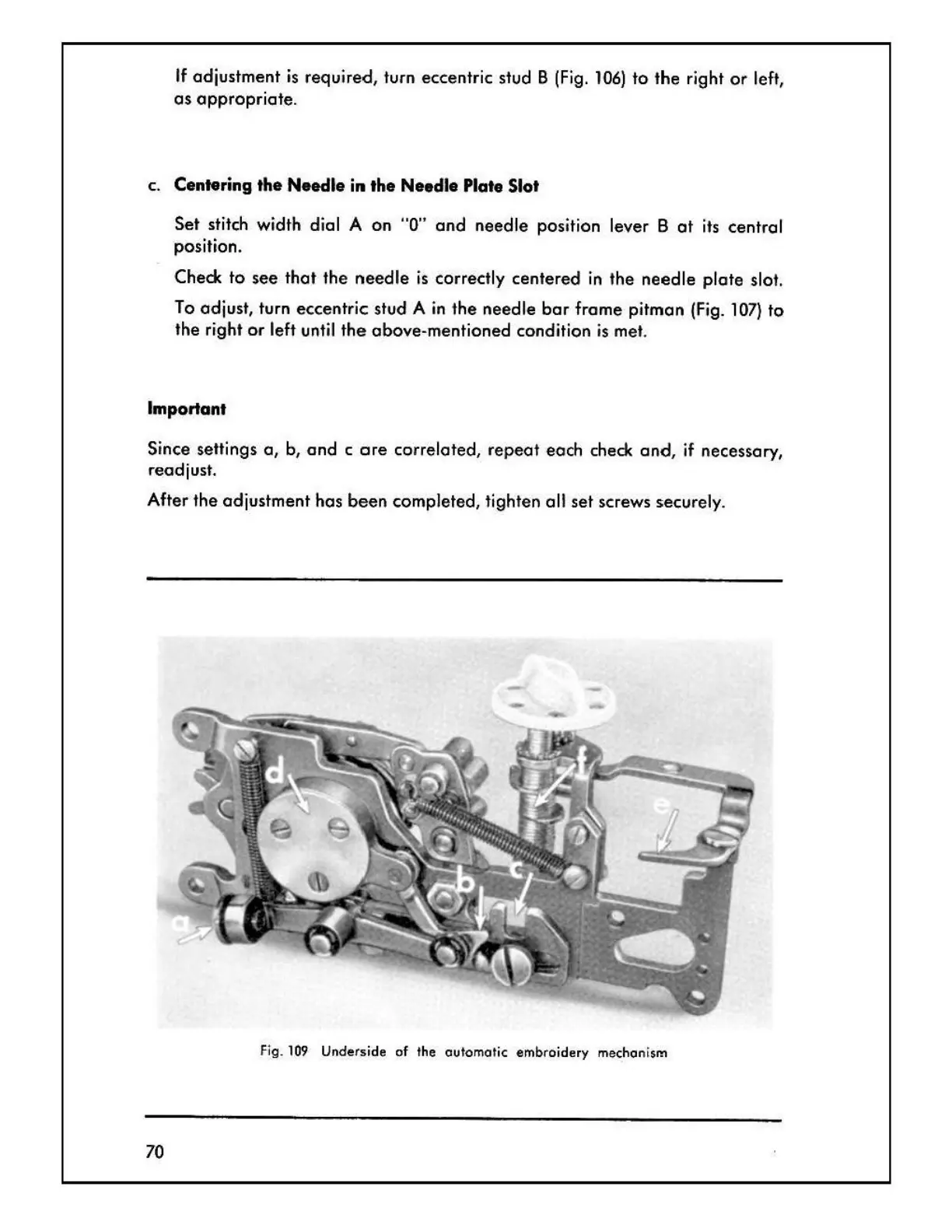

Fig.
109
Underside
of
the automatic embroidery mechanism
70
