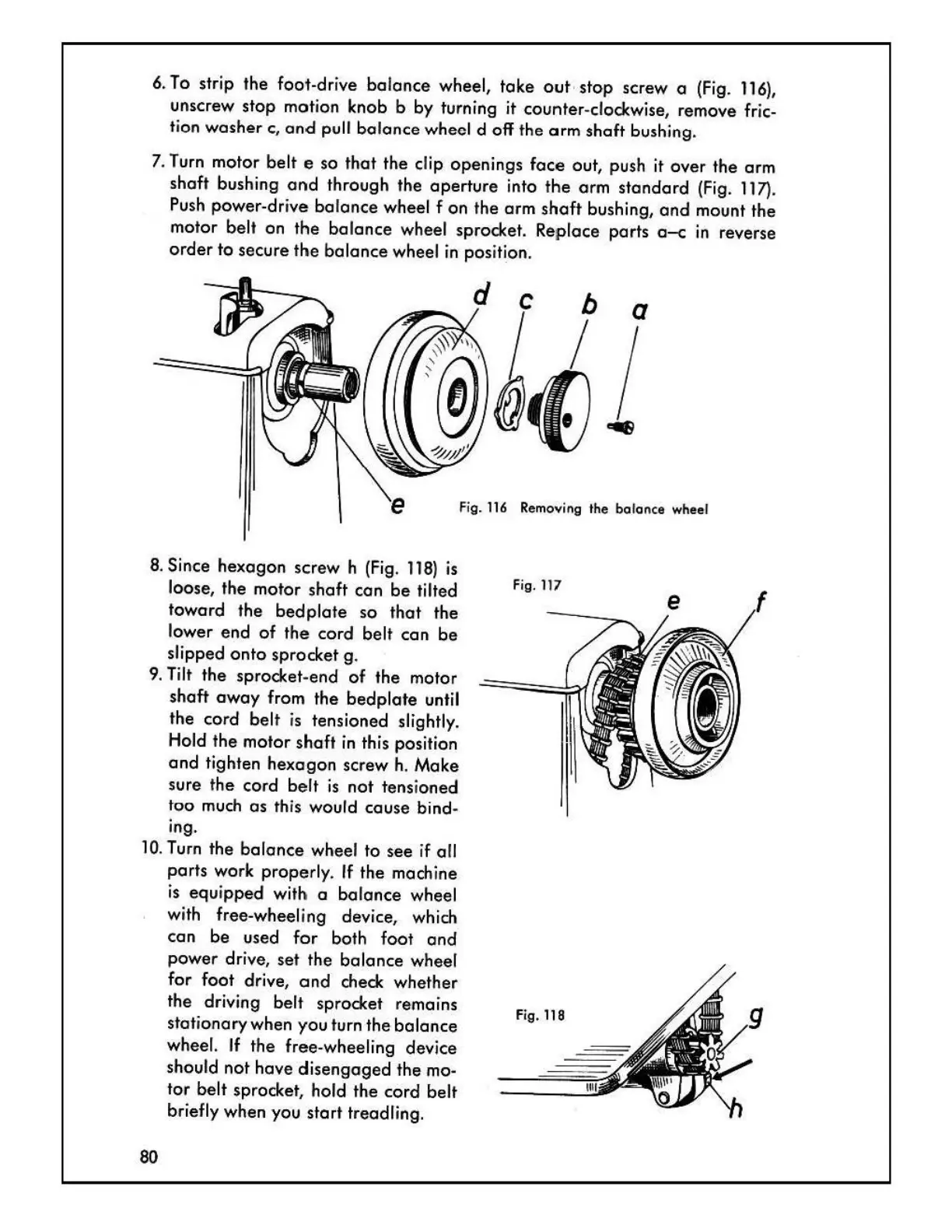

6. To strip the foot-drive
balance
wheel,
take
out
· stop screw a (Fig.
116),
unscrew stop motion knob b by turning it counter-clockwise, remove fric-
tion
washer
c,
and
pull
balance
wheel d off the
arm
shaft
bushing.
7.
Turn motor belt e so
that
the clip openings
face
out, push it over the arm
shaft
bushing
and
through the
aperture
into the arm
standard
(Fig.
117)
.
Push power-drive
balance
wheel f on the
arm
shaft
bushing,
and
mount the
motor
belt on the
balance
wheel sprocket. Replace parts a-<:
in
reverse
order
to secure the
balance
wheel
in
position.
8.
Since hexagon screw h (Fig.
118)
is
loose, the motor shaft can
be
tilted
toward the
bedplate
so
that
the
lower end
of
the
cord
belt
can
be
slipped
onto
sprocket g.
9.
Tilt
the sprocket-end
of
the motor
shaft
away
from the
bedplate
until
the
cord
belt
is
tensioned slightly.
Hold
the motor
shaft
in
this position
and
tighten hexagon screw
h.
Make
sure the cord
belt
is
not tensioned
too
much
as
this would cause bind-
ing.
10.
Turn the
balance
wheel
to
see
if all
parts work properly.
If
the machine
is
equipped with a
balance
wheel
with free-wheeling device, which
can
be
used
for
both foot
and
power drive, set the
balance
wheel
for foot drive,
and
check whether
the driving belt sprocket remains
stationary when you turn the
balance
wheel.
If
the free-wheeling device
should not hove
disengaged
the mo-
tor
belt sprocket, hold the cord belt
briefly when you start treadling.
80
Fig.
116
Removing the balance wheel
Fig. 117
fig.
118
