Pfaff hobbylock 783 - Adjusting the Feed Dog of the Hobbylock 783 and 784

8

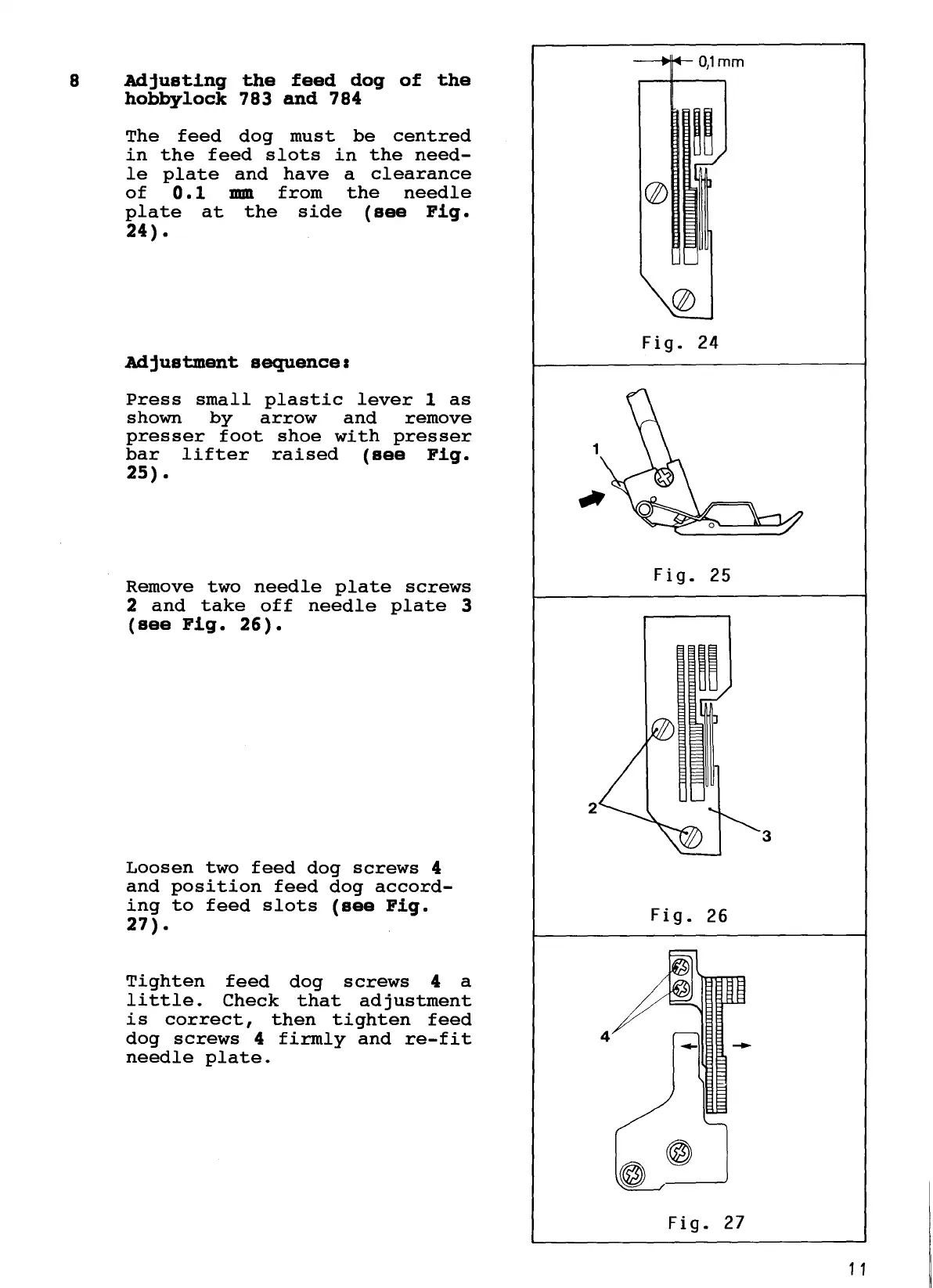

Adjusting the feed dog of the
hobbylock 783 and 784
The feed dog must be centred
in the feed slots in the need-
le plate and have a clearance
of 0.1 mm from the needle
plate at the side (see Fig.
24).
Adjustment sequence:
Press small plastic lever 1 as
shown by arrow and remove
presser foot shoe with presser
bar lifter raised (see Fig.
25).
Remove two needle plate screws
2 and take off needle plate 3
(see Fig. 26).
Loosen two feed dog screws 4
and position feed dog accord-
ing to feed slots (see Fig.
27) .
Tighten feed dog screws 4 a
little. Check that adjustment
is correct, then tighten feed
dog screws 4 firmly and re-fit
needle plate.
1
2
--M4r- 0,1 mm
Fig. 24
Fig. 25
3
Fig. 26
4
--
Fig. 27
11
